Use complex circuit rules {Series & parallel) to determine: (1) Find Itof Riot, Plot. (2) Find V, 1 , P for each individual resistor. (3)

image text in transcribed

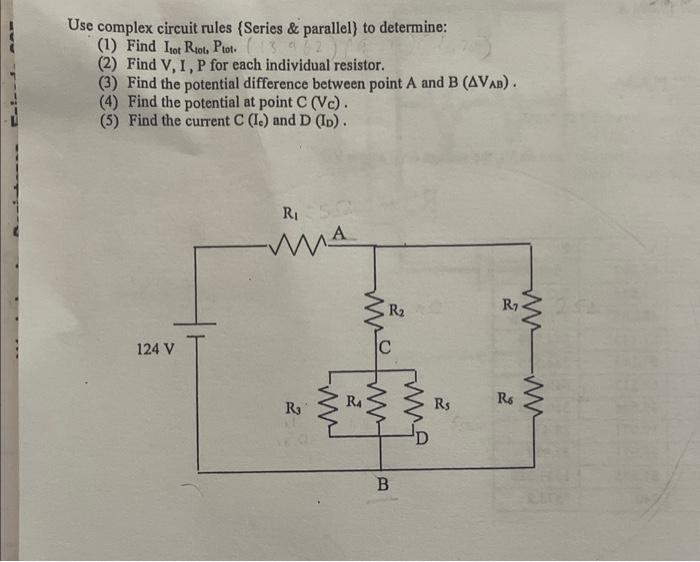

Use complex circuit rules {Series & parallel) to determine: (1) Find Itof Riot, Plot. (2) Find V, 1 , P for each individual resistor. (3) Find the potential difference between point A and B (AVAD) . (4) Find the potential at point C (Vc) . (5) Find the current C (I.) and D (ID) . MA W R2 124 V - RA Rs R6 B
