Use the graphs on the handout for this section 9) Refer to Graph 3 Describe the motion of the object Image gallery(click for full size) (7pts) Question 9 Refer to Graph 3 Describe the motion of the object B to C Choose the match for B to C Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving C to D Choose the match for C to D Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving F to G Choose the match for F to G Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving G to H Choose the match for G to H Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving A to B Choose the match for A to B Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving E to F Choose the match for E to F Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving D to E Choose the match for D to E Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving Pane Graph 1 Velocity v Time N A E F I J o B N Velocity (m s) 10 G H 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 Time (s) Graph 2 Velocity v Time 15 I 10 A B UT Velocity (m s) 0 5 10 F 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100105 Time (s) Graph 3 Velocity v Time 10 H I F Velocity (m s) N D O E N B 4 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time (s)

The Answer is in the image, click to view ...

Answered step by step

Verified Expert Solution

Link Copied!

Question

1 Approved Answer

Posted on Jun 24, 2024

Use the graphs on the handout for this section 9) Refer to Graph 3. Describe the motion of the object. Image gallery(click for full size)

Use the graphs on the handout for this section

Refer to Graph 3. Describe the motion of the object.

Image gallery(click for full size)

(7pts)

Question 9 - Refer to Graph 3. Describe the motion of the object.

B to C	Choose the match for B to C Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
C to D	Choose the match for C to D Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
F to G	Choose the match for F to G Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
G to H	Choose the match for G to H Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
A to B	Choose the match for A to B Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
E to F	Choose the match for E to F Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving
D to E	Choose the match for D to E Select One Speeding up and moving in the negative direction Slowing down and moving in the negative direction Slowing down and moving in the positive direction Constant negative velocity Speeding up and moving in the positive direction Constant positive velocity Not moving

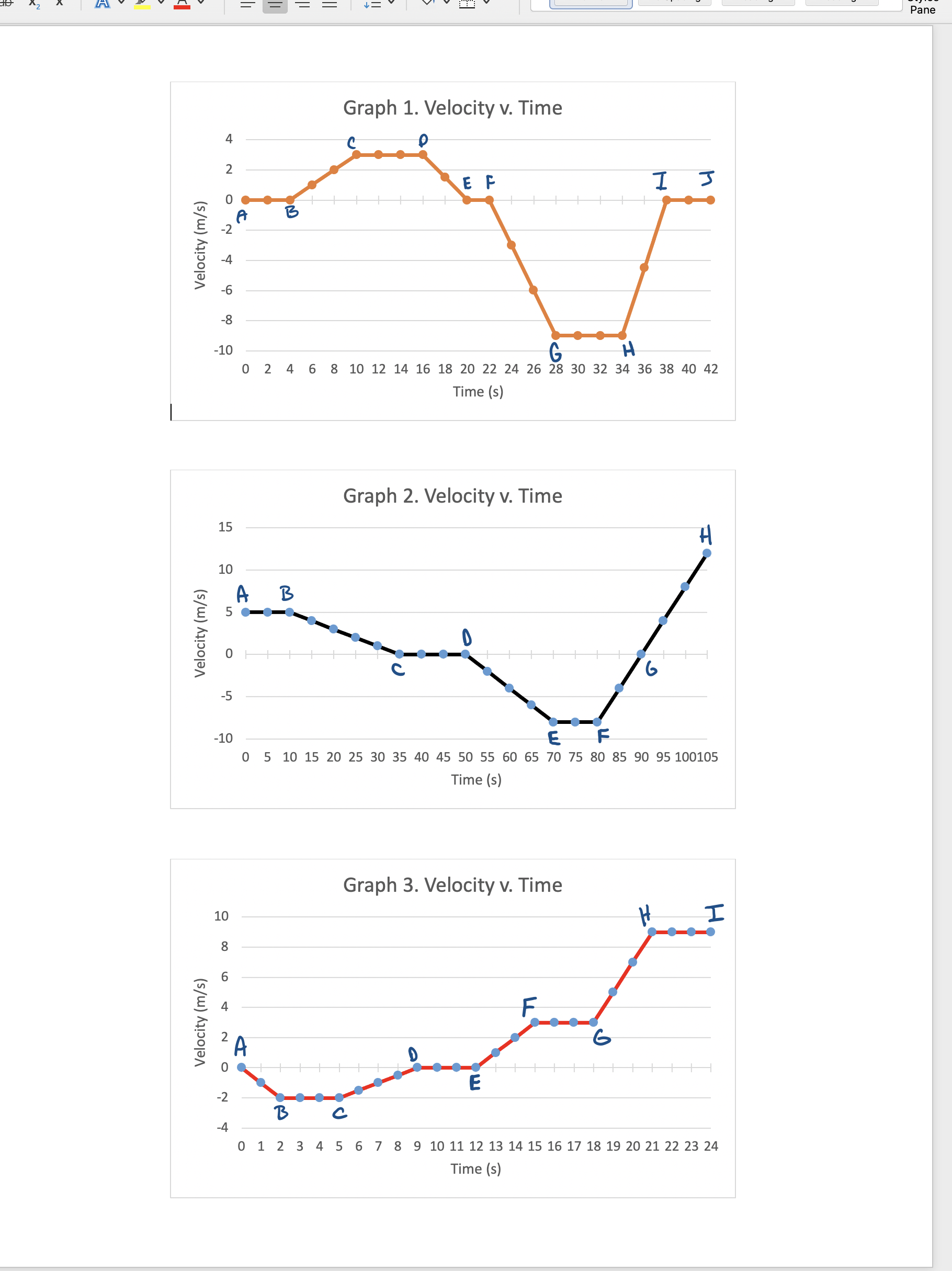

Pane Graph 1. Velocity v. Time N A E F I J o B N Velocity (m/s) 10 G H 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 Time (s) Graph 2. Velocity v. Time 15 I 10 A B UT Velocity (m/s) 0 -5 10 F 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100105 Time (s) Graph 3. Velocity v. Time 10 H I F Velocity (m/s) N D O E N B 4 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time (s)
