Using PLP Tool 5.2 My code so far. Not really sure how to get the switch to light up the correct LEDs as shown in

Using PLP Tool 5.2

image text in transcribed

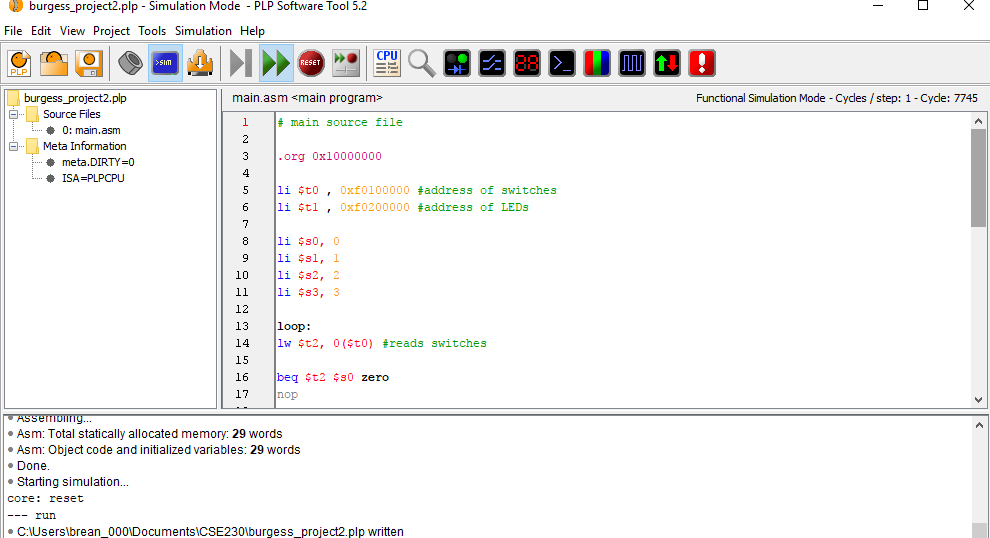

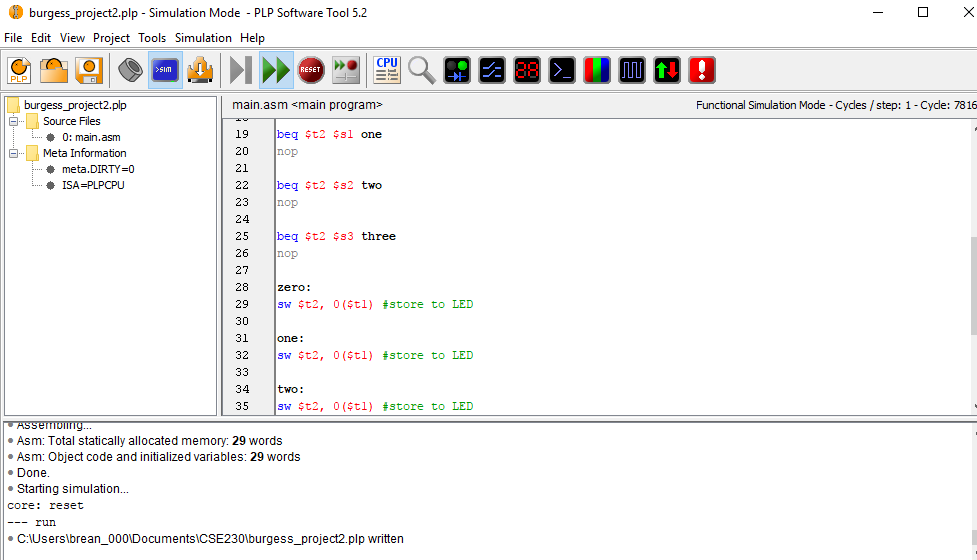

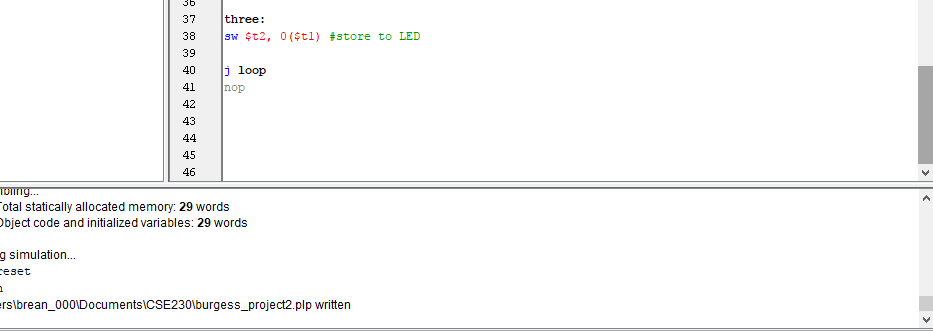

My code so far. Not really sure how to get the switch to light up the correct LEDs as shown in the table. So far the switch just lights up the corresponding LED.

image text in transcribed

image text in transcribed

image text in transcribed

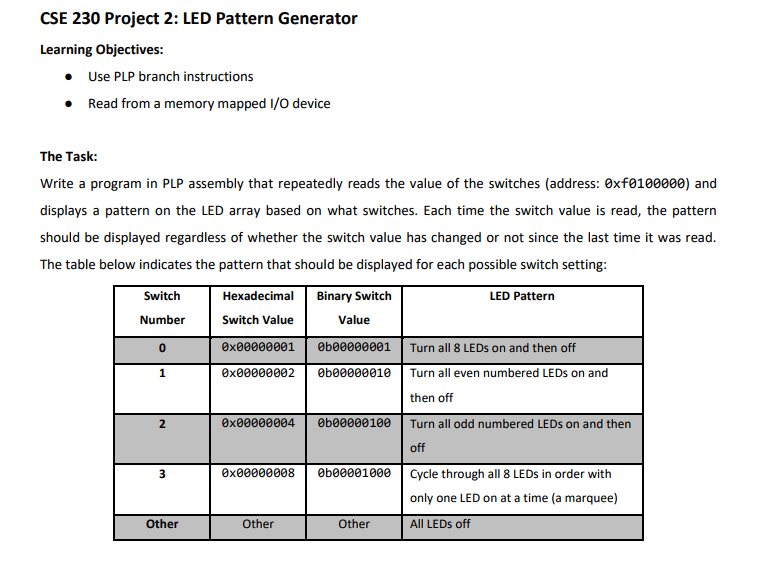

CSE 230 Project 2: LED Pattern Generator Learning Objectives: Use PLP branch instructions Read from a memory mapped I/O device The Task: Write a program in PLP assembly that repeatedly reads the value of the switches (address: 0xf0100000) and displays a pattern on the LED array based on what switches. Each time the switch value is read, the pattern should be displayed regardless of whether the switch value has changed or not since the last time it was read. The table below indicates the pattern that should be displayed for each possible switch setting: SwitchHexadecia Binary Switch Number Switch Value LED Pattern Value 0x00000001 0b00000001 Turn all 8 LEDs on and then off 0x00000002 0b00000010 Turn all even numbered LEDs on and then off Turn all odd numbered LEDs on and then off 2 0x80000004 | 0b00000100 ex0000e08 eb00010 Cycle through all 8 LEDs in order with only one LED on at a time (a marquee) Other Other All LEDs off CSE 230 Project 2: LED Pattern Generator Learning Objectives: Use PLP branch instructions Read from a memory mapped I/O device The Task: Write a program in PLP assembly that repeatedly reads the value of the switches (address: 0xf0100000) and displays a pattern on the LED array based on what switches. Each time the switch value is read, the pattern should be displayed regardless of whether the switch value has changed or not since the last time it was read. The table below indicates the pattern that should be displayed for each possible switch setting: SwitchHexadecia Binary Switch Number Switch Value LED Pattern Value 0x00000001 0b00000001 Turn all 8 LEDs on and then off 0x00000002 0b00000010 Turn all even numbered LEDs on and then off Turn all odd numbered LEDs on and then off 2 0x80000004 | 0b00000100 ex0000e08 eb00010 Cycle through all 8 LEDs in order with only one LED on at a time (a marquee) Other Other All LEDs off
