Question

1 Approved Answer

Using Representations On the grid to the right, sketch a graph of the acceleration of the 4 cart as a function of displacement from x

image text in transcribed

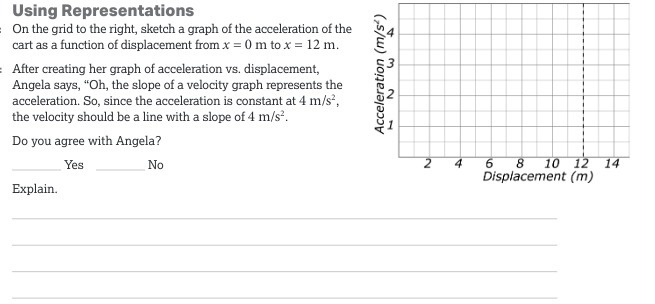

Using Representations On the grid to the right, sketch a graph of the acceleration of the 4 cart as a function of displacement from x = 0 m to x = 12 m. After creating her graph of acceleration vs. displacement, 3 Acceleration (m/s*) Angela says, "Oh, the slope of a velocity graph represents the acceleration. So, since the acceleration is constant at 4 m/s, 2 the velocity should be a line with a slope of 4 m/s. Do you agree with Angela? Yes No 4 6 8 10 12 14 Displacement (m) Explain

Step by Step Solution

There are 3 Steps involved in it
