Question: Using the method of sections, determine the force in members GF , FC , and CD of the bridge truss and state if the members

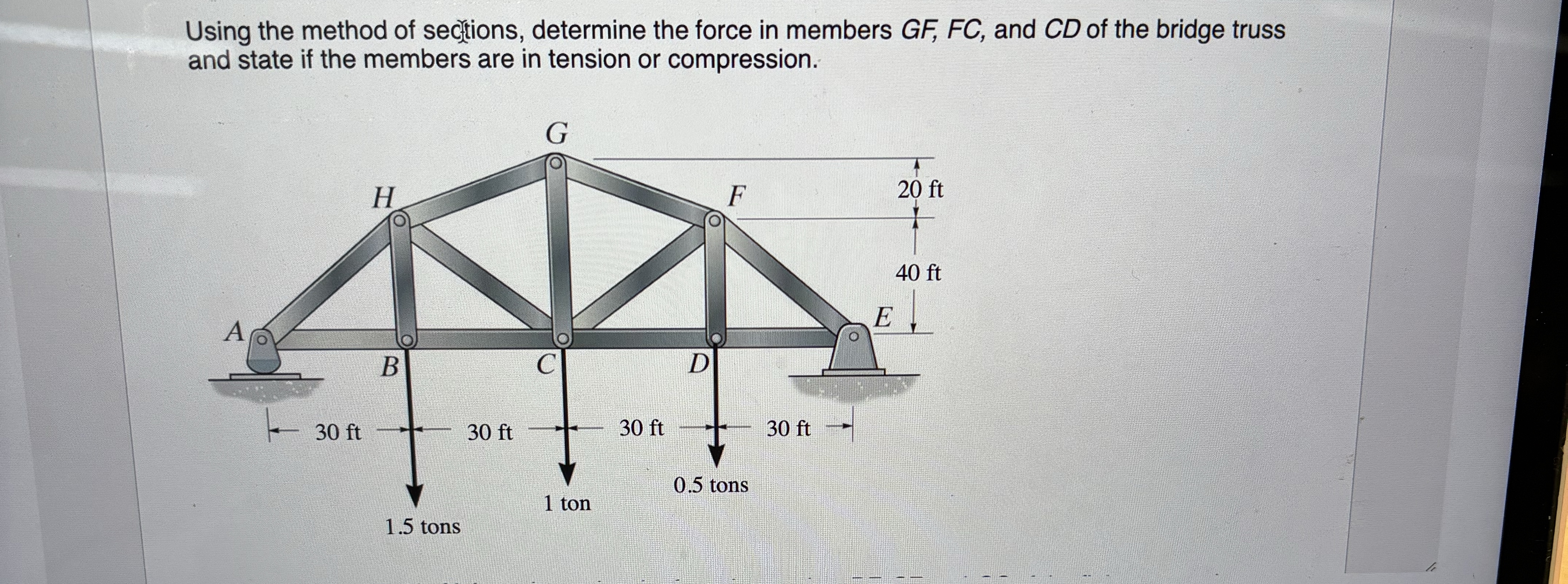

Using the method of sections, determine the force in members GF, FC, and CD of the bridge truss and state if the members are in tension or compression.
Using the method of sections, determine the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
