Question

1 Approved Answer

.VBC (Very Basic Computer): 2 registers, 16-word instruction memory, 8 bits per instruction. CONTROL UNIT DATAPATH M6 LEDs PC JMP Register File SWS sclr PC

image text in transcribedimage text in transcribed

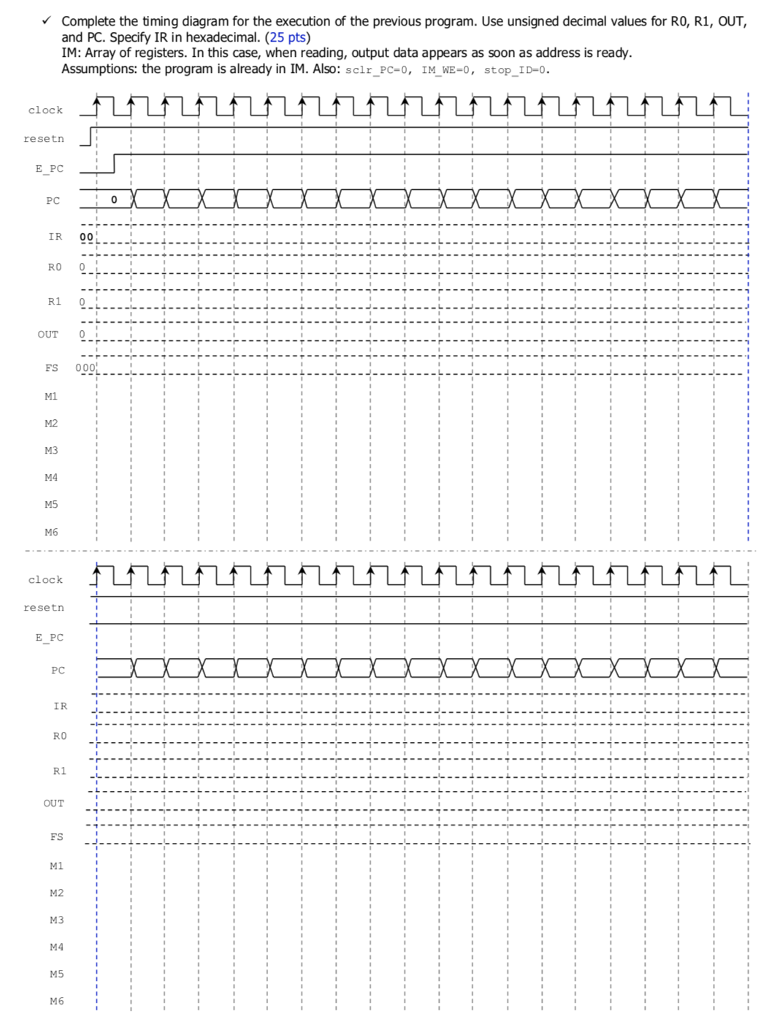

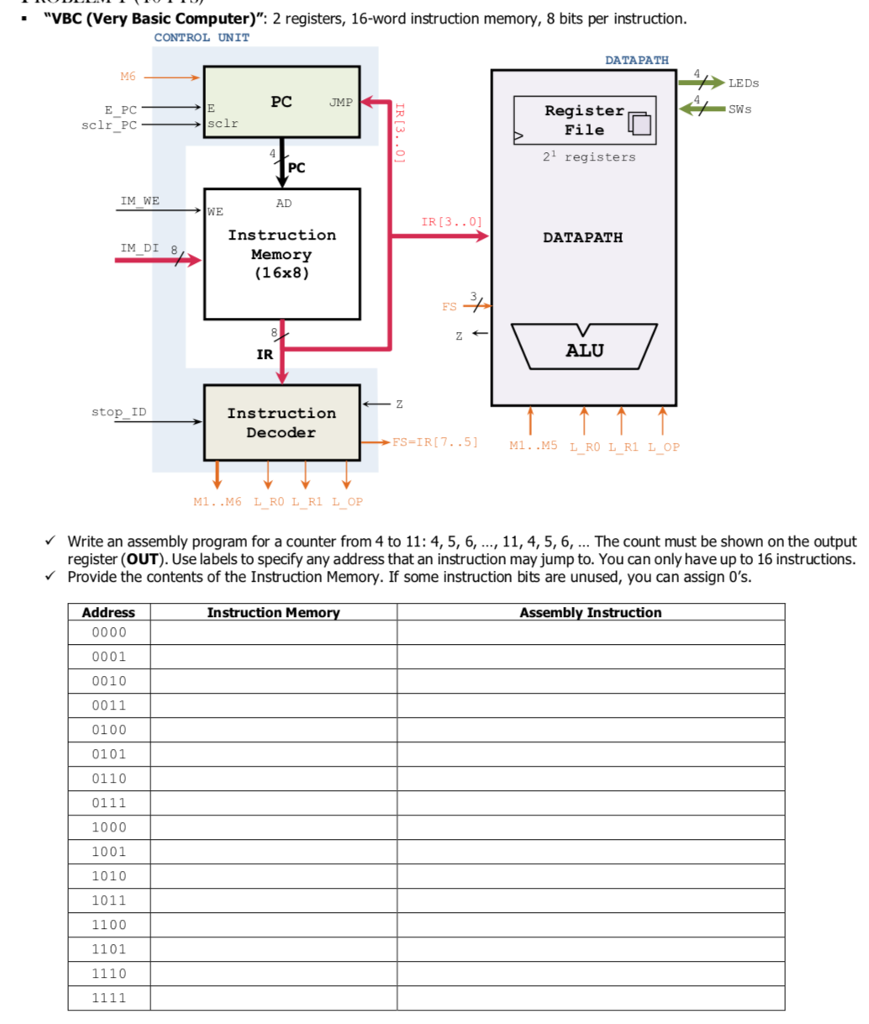

."VBC (Very Basic Computer)": 2 registers, 16-word instruction memory, 8 bits per instruction. CONTROL UNIT DATAPATH M6 LEDs PC JMP Register File SWS sclr PC sclr 21 registers PC IM WE AD R [3..0] Instruction Memory (16x8) DATAPATH IM DI 8 FS IR ALU Instruction Decoder stop ID Write an assembly program for a counter from 4 to 11: 4, 5, 6, ..., 11, 4, 5, 6, The count must be shown on the output register (OUT). Use labels to specify any address that an instruction may jump to. You can only have up to 16 instructions. Provide the contents of the Instruction Memory. If some instruction bits are unused, you can assign 0's. Address Instruction Memo Assembly Instruction 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 ."VBC (Very Basic Computer)": 2 registers, 16-word instruction memory, 8 bits per instruction. CONTROL UNIT DATAPATH M6 LEDs PC JMP Register File SWS sclr PC sclr 21 registers PC IM WE AD R [3..0] Instruction Memory (16x8) DATAPATH IM DI 8 FS IR ALU Instruction Decoder stop ID Write an assembly program for a counter from 4 to 11: 4, 5, 6, ..., 11, 4, 5, 6, The count must be shown on the output register (OUT). Use labels to specify any address that an instruction may jump to. You can only have up to 16 instructions. Provide the contents of the Instruction Memory. If some instruction bits are unused, you can assign 0's. Address Instruction Memo Assembly Instruction 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110
