Why won't my code run this is the assignment and my code The purpose of this assignment is: - Construct logical circuits from compound logic

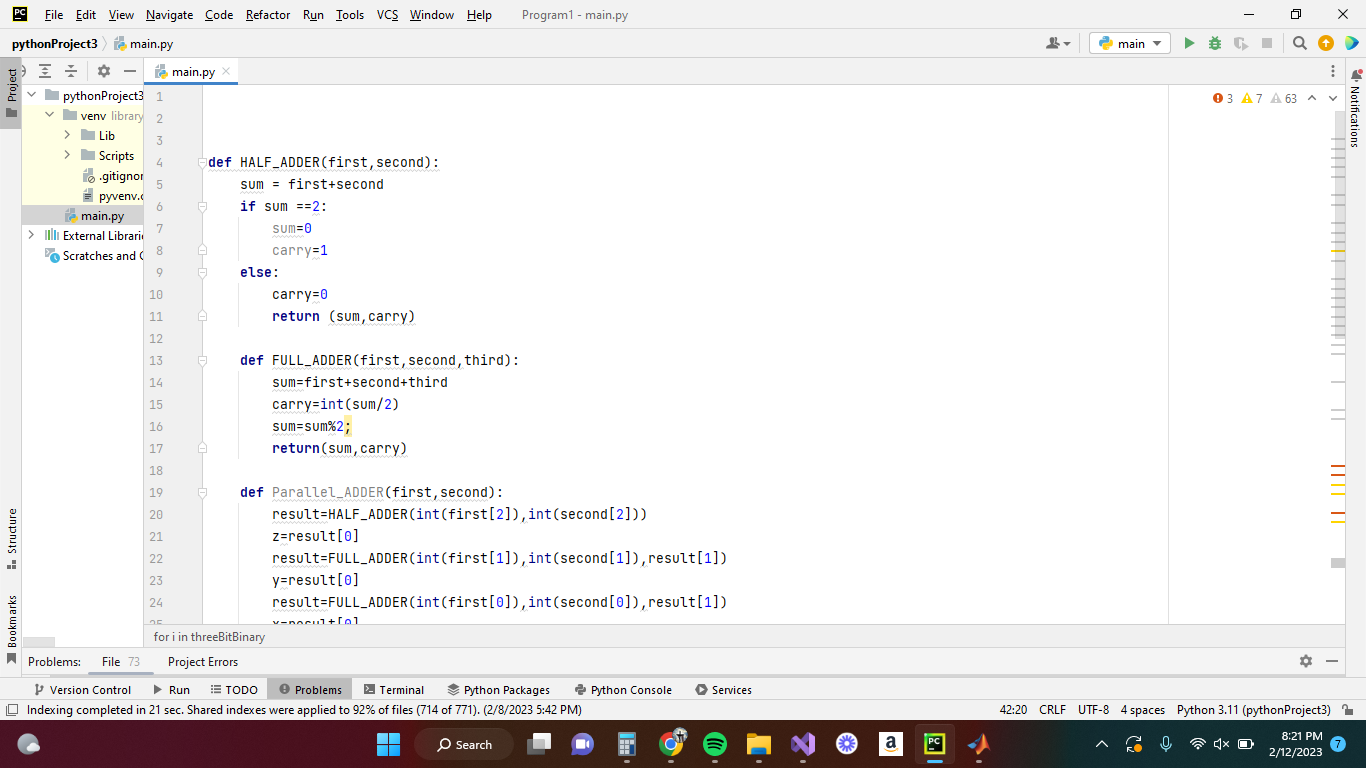

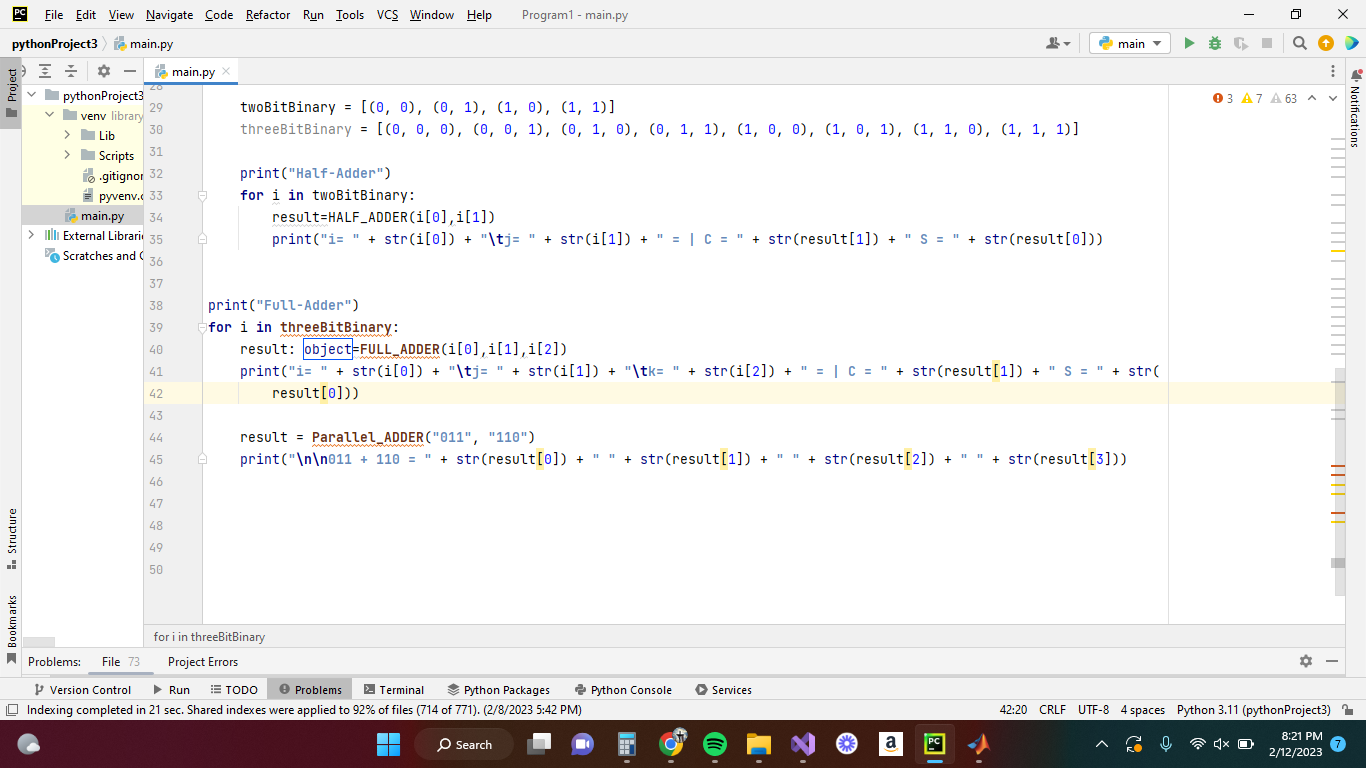

Why won't my code run this is the assignment and my code

image text in transcribedimage text in transcribedimage text in transcribed

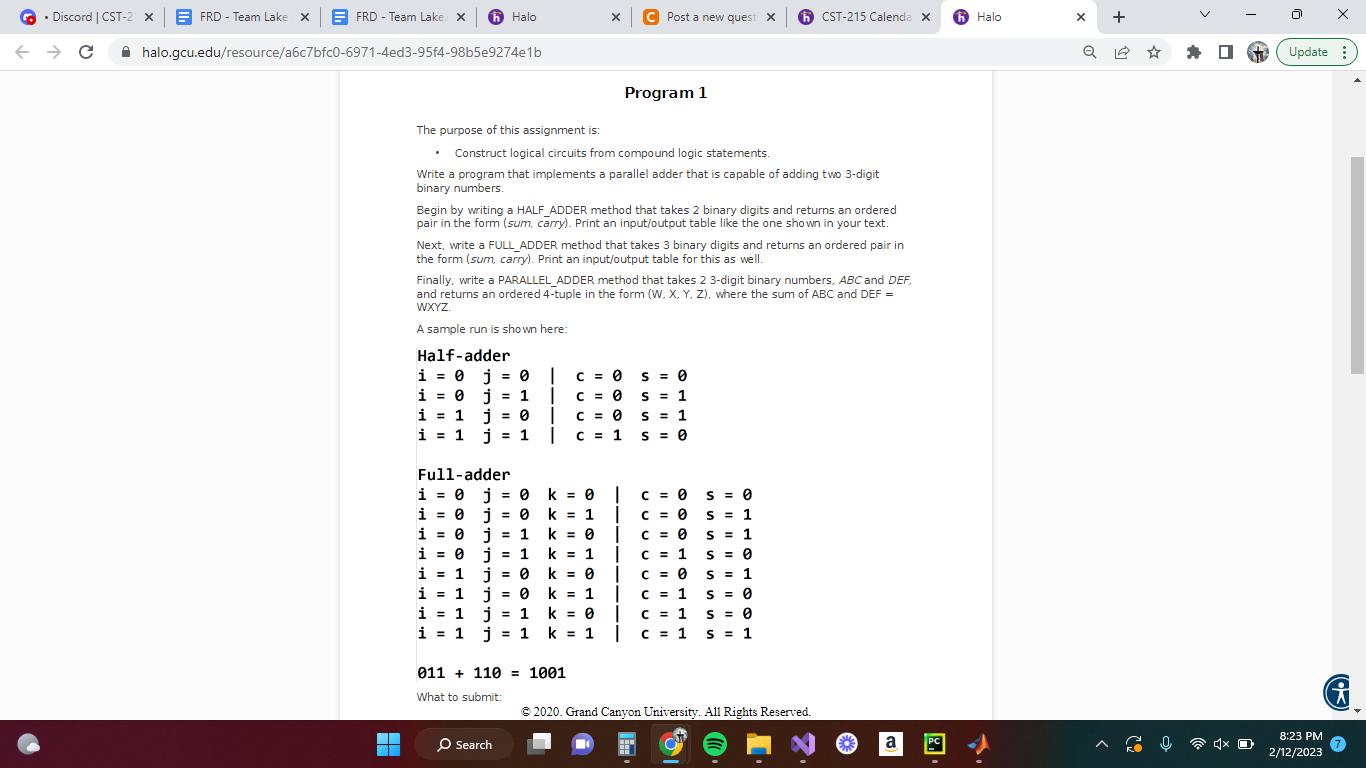

The purpose of this assignment is: - Construct logical circuits from compound logic statements. Write a program that implements a parallel adder that is capable of adding two 3-digit binary numbers. Begin by writing a HALF_ADDER method that takes 2 binary digits and returns an ordered pair in the form (sum, carry). Print an input/output table like the one shown in your text. Next, write a FULL_ADDER method that takes 3 binary digits and returns an ordered pair in the form (sum, carry). Print an input/output table for this as well. Finally, write a PARALLEL_ADDER method that takes 2 3-digit binary numbers, ABC and DEF. and returns an ordered 4-tuple in the form (W, X,Y,Z), where the sum of ABC and DEF= WXYZ. A sample run is shown here: Half-adder \begin{tabular}{ll|ll} i=0 & j=0 & c=0 & s=0 \\ i=0 & j=1 & c=0 & s=1 \\ i=1 & j=0 & c=0 & s=1 \\ i=1 & j=1 & c=1 & s=0 \end{tabular} Full-adder \begin{tabular}{lll|ll} i=0 & j=0 & k=0 & c=0 & s=0 \\ i=0 & j=0 & k=1 & c=0 & s=1 \\ i=0 & j=1 & k=0 & c=0 & s=1 \\ i=0 & j=1 & k=1 & c=1 & s=0 \\ i=1 & j=0 & k=0 & k=0 & s=1 \\ i=1 & j=0 & k=1 & c=1 & s=0 \\ i=1 & j=1 & k=0 & c=1 & s=0 \\ i=1 & j=1 & k=1 & c=1 & s=1 \end{tabular} threeBitBinary for i in threeBitBinare
