Write the equations needed to solve for the currents in each branch. Assume the current in the left branch is toward the top of the

image text in transcribed

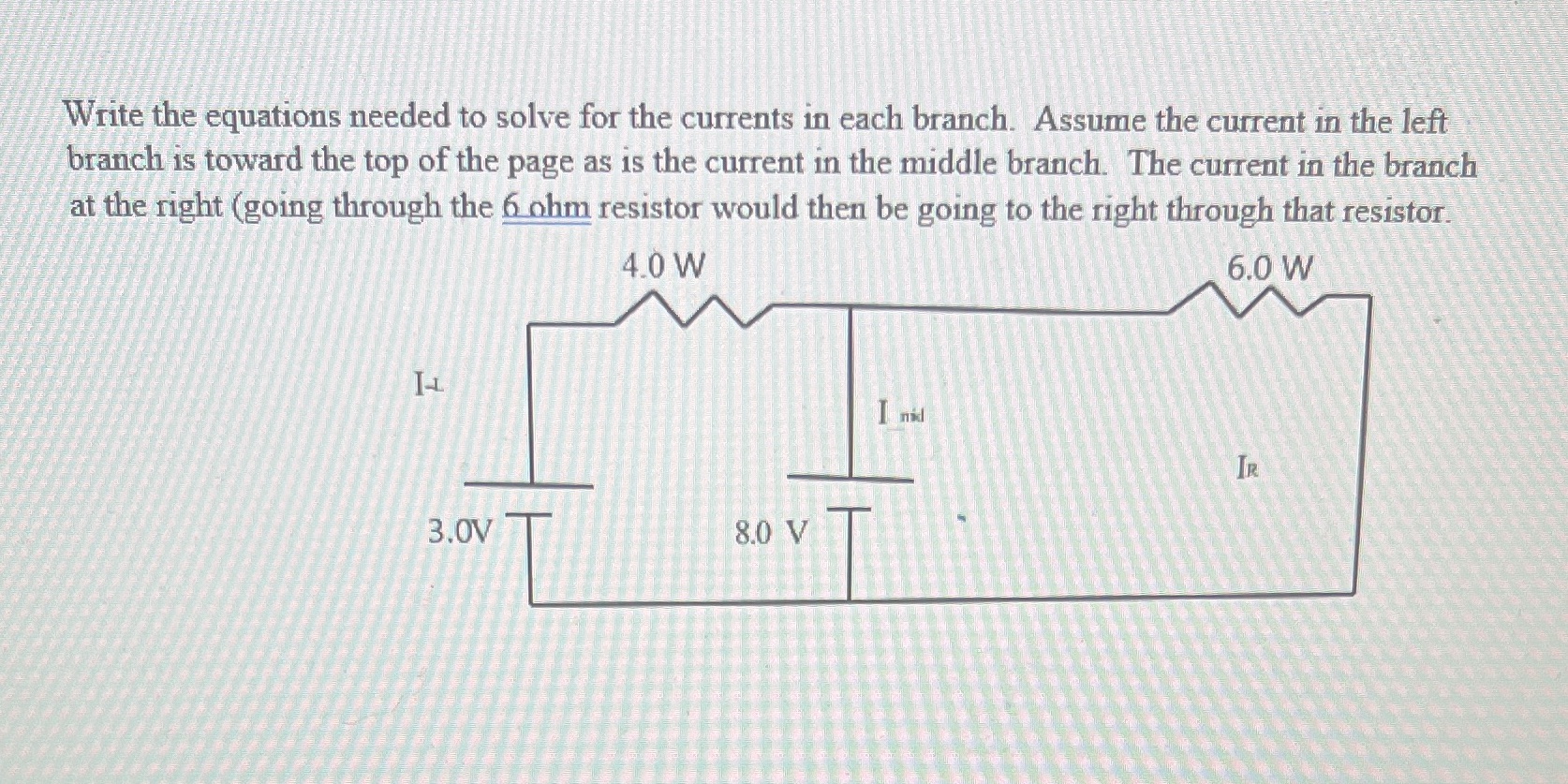

Write the equations needed to solve for the currents in each branch. Assume the current in the left branch is toward the top of the page as is the current in the middle branch. The current in the branch at the right (going through the 6 ohm resistor would then be going to the right through that resistor. 40 W 6.0 W I-L I mid IR 3.0V 8.0 V

Step by Step Solution

There are 3 Steps involved in it

Step: 1

blur-text-image
