Your customer has called and has found base plates to be defective, they are oversize.The customer has found parts that exceed the maximum width dimension of 4.005.As a result the mating component will not fit on these base plates properly.You manufacture these base plates on four identical CNC milling machines with approximately 25% of the production coming from each machine.

The report should contain at a minimum the following sections:

1)Introduction: describing the process and statement of the general problem(s)

2)Data: copy of data set in report (preferably in an appendix)

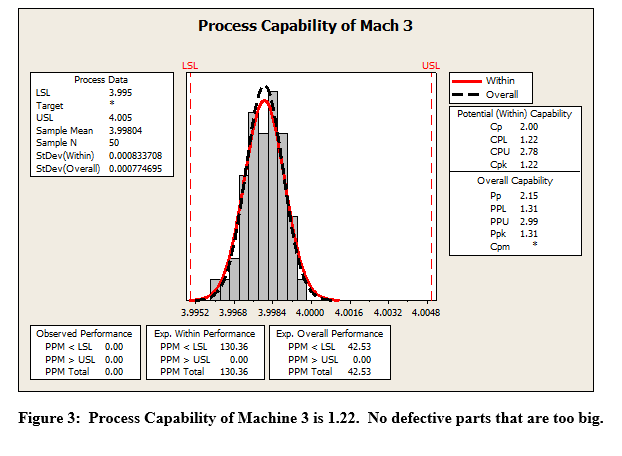

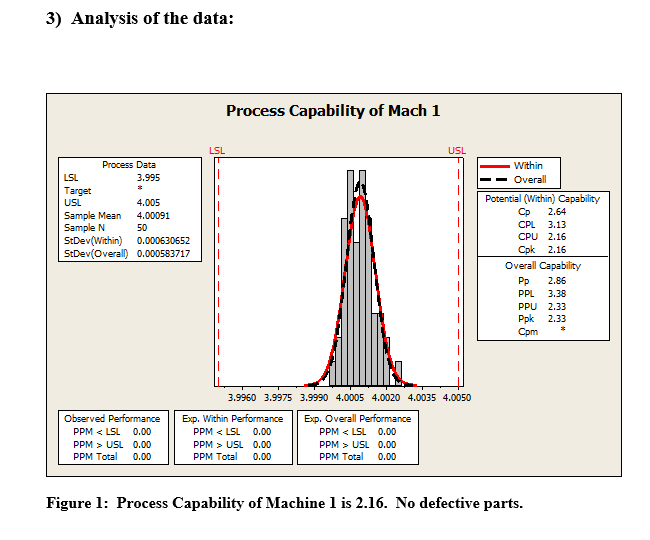

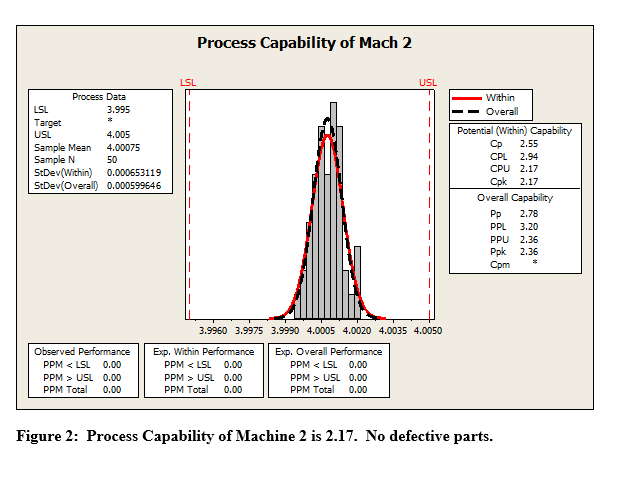

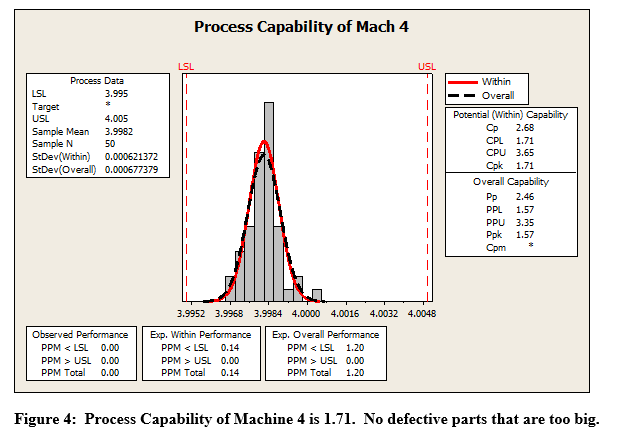

3)Analysis of the data: Analyze the data using the various descriptive, presentational, analytical and problem solving tools such as descriptive statistics, frequency distributions, Histograms, Pareto diagrams, run charts, etc.(Do not use any Statistical Process Control tools).Graphical analysis of the data is required and can be completed in Excel, MINITAB, another software package or by hand on graph paper if desired.)

4)Detailed problem statement(s): based on the results of the customer complaint or data analysis

5)Cause and effect diagram(s):identifying PERTINENT possible solutions to

the problem(s) create one or more cause and effect diagrams of potential root causes of the problem(s).Cause and effect diagrams are a requirement of the assignment and can be created using MINITAB or by hand on graph paper if desired.)

6)Conclusion: stating your recommendations.
