1. The figure below illustrates two protons that are moving with velocity 13 = 2.0 * 1042 i and S v' = 4.0 x 10?

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed
image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

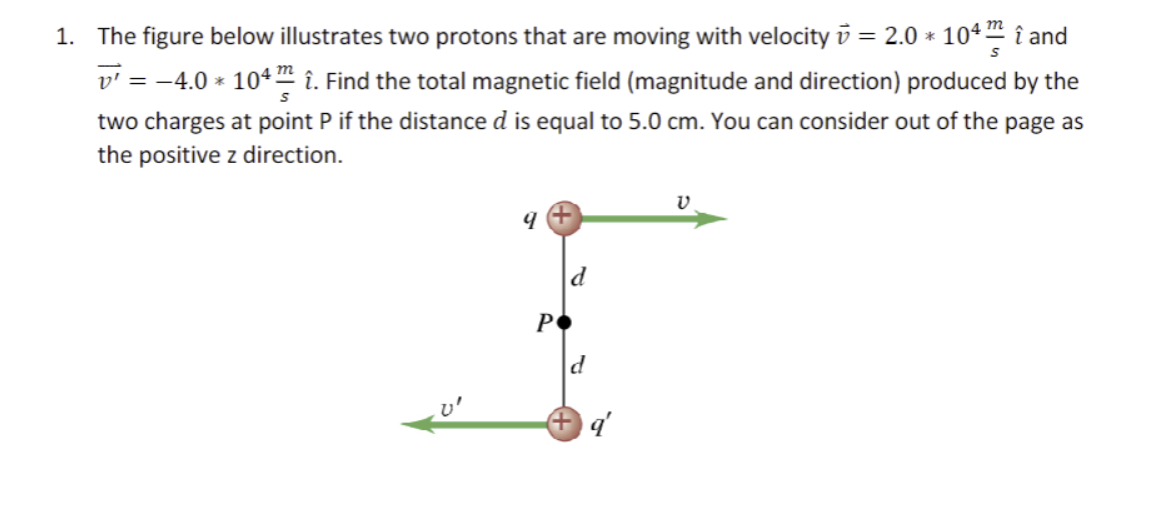

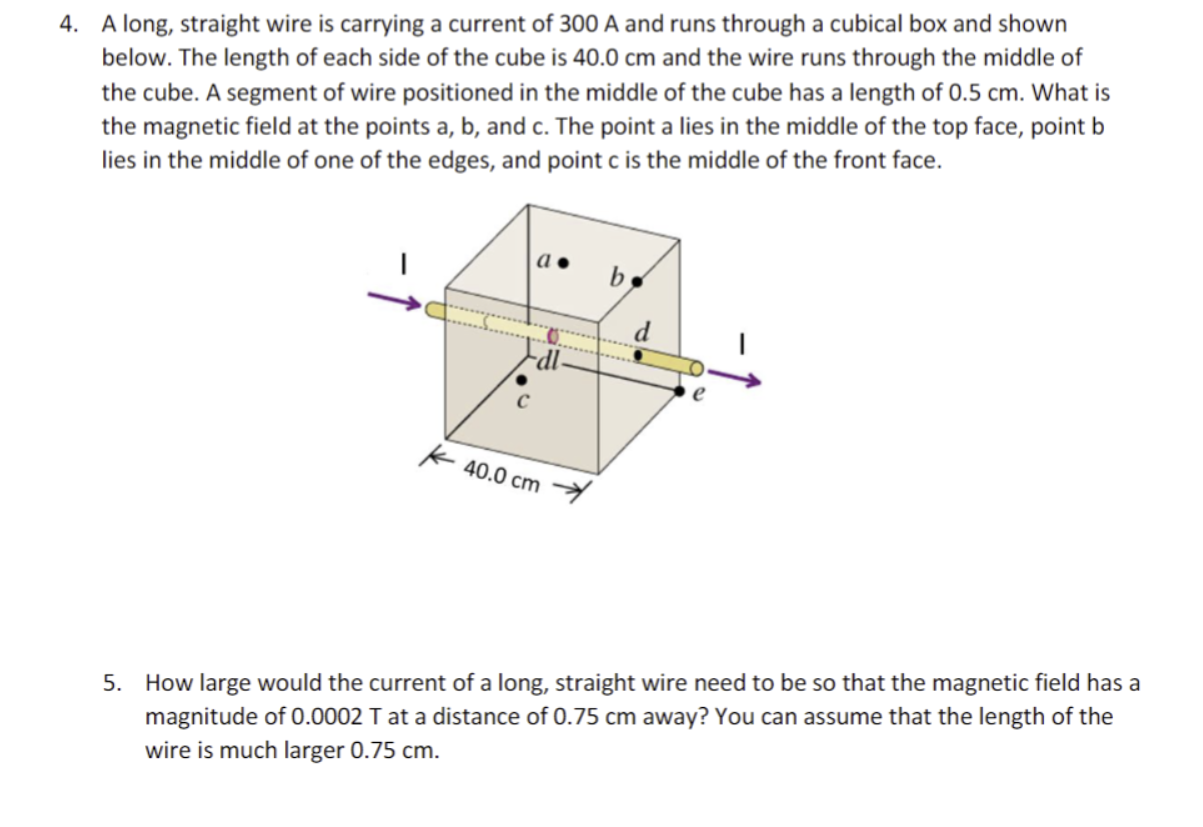

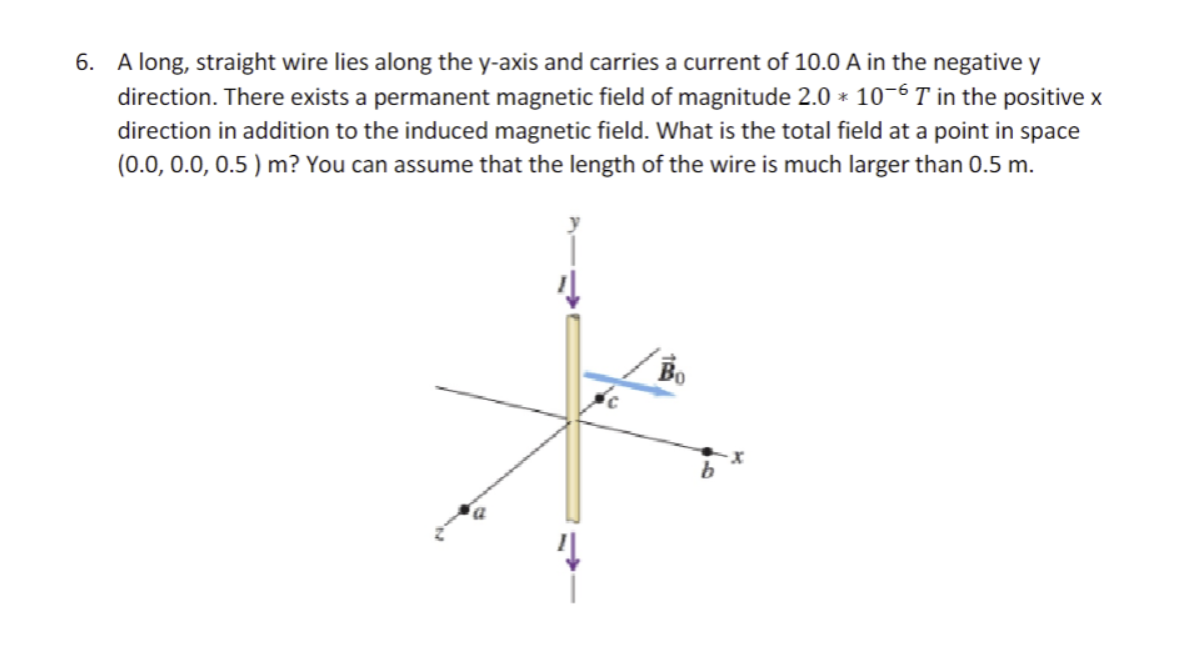

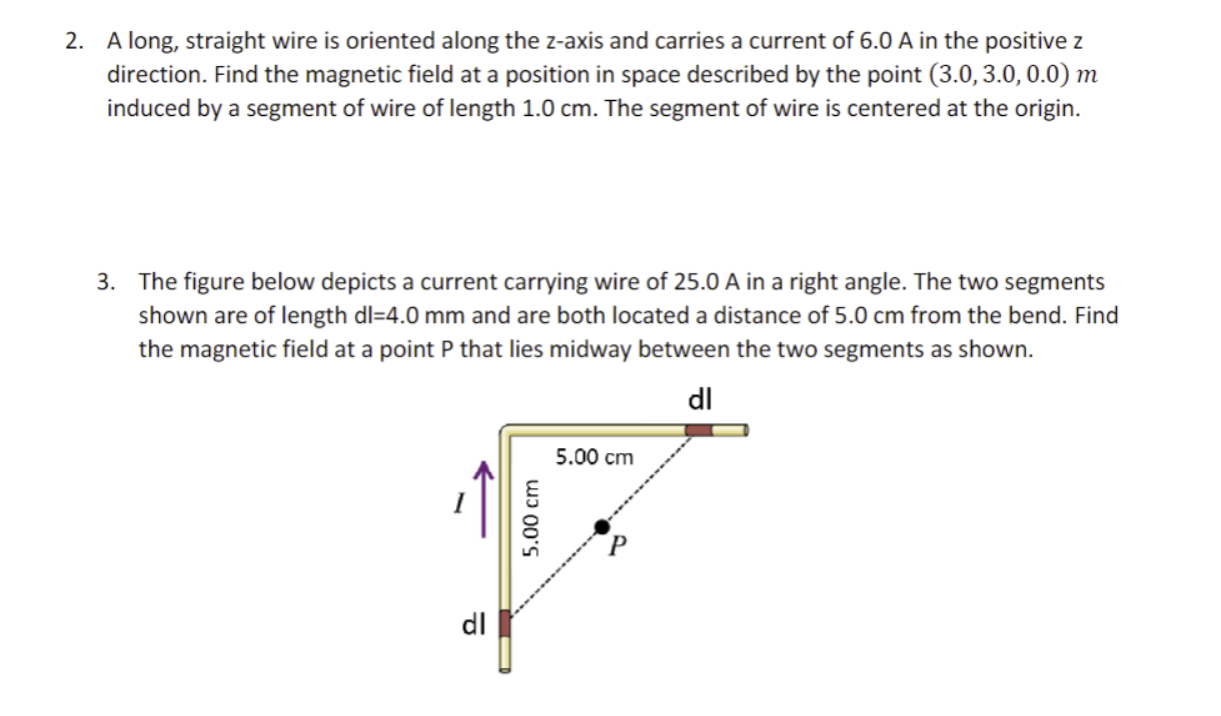

1. The figure below illustrates two protons that are moving with velocity 13 = 2.0 * 1042 i and S v' = 4.0 x 10\"? f. Find the total magnetic eld (magnitude and direction) produced by the two charges at point P if the distance d is equal to 5.0 cm. You can consider out of the page as the positive 2 direction. 2. A long, straight wire is oriented along the z-axis and carries a current of 6.0 A in the positive 2 direction. Find the magnetic eld at a position in space described by the point (3.0, 3.0, 0.0) m induced by a segment of wire of length 1.0 cm. The segment of wire is centered at the origin. 3. The figure below depicts a current carrying wire of 25.0 A in a right angle. The two segments shown are of length dl=4.0 mm and are both located a distance of 5.0 cm from the bend. Find the magnetic field at a point P that lies midway between the two segments as shown. 4. A long, straight wire is carrying a current of 300 A and runs through a cubical box and shown below. The length of each side of the cube is 40.0 cm and the wire runs through the middle of the cube. A segment of wire positioned in the middle of the cube has a length of 0.5 cm. What is the magnetic field at the points a, b, and c. The point a lies in the middle of the top face, point b lies in the middle of one of the edges, and point c is the middle of the front face. 5. How large would the current of a long, straight wire need to be so that the magnetic field has a magnitude of 0.0002 T at a distance of 0.75 cm away? You can assume that the length of the wire is much larger 0.75 cm. 6. A long, straight wire lies along the y-axis and carries a current of 10.0 A in the negative y direction. There exists a permanent magnetic field of magnitude 2.0 * 10- T in the positive x direction in addition to the induced magnetic field. What is the total field at a point in space (0.0, 0.0, 0.5 ) m? You can assume that the length of the wire is much larger than 0.5 m. Bo C X b a
