Question: 2 0 points A synchronizer is built from a pair of flip - flops with t s e t u p = 5 0 p

20 points

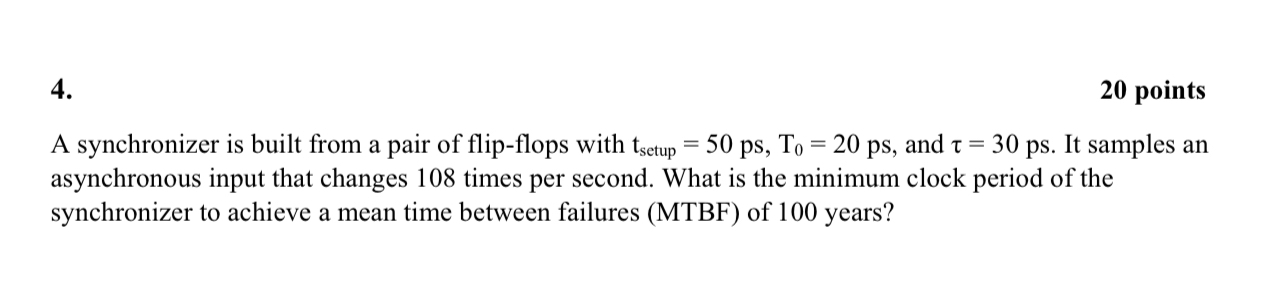

A synchronizer is built from a pair of flip-flops with tsetup=50ps,T0=20ps, and =30ps. It samples an asynchronous input that changes 108 times per second. What is the minimum clock period of the synchronizer to achieve a mean time between failures (MTBF) of 100 years?
2 0 points A synchronizer is built from a pair of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
