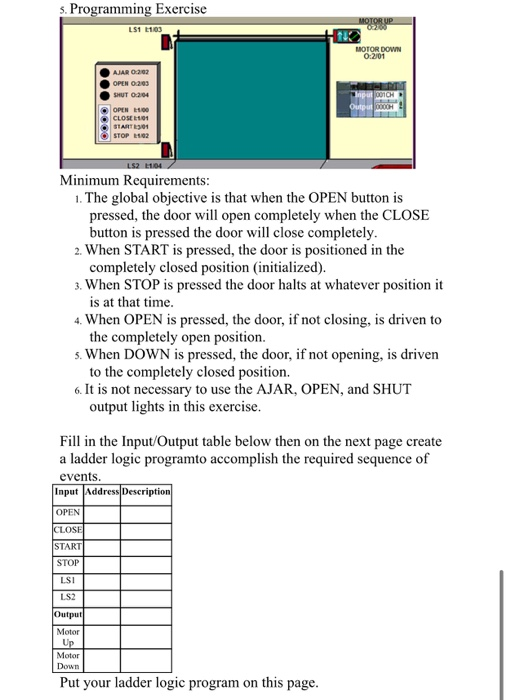

5. Programming Exercise MOTOR UP L51 103 HO MOTOR DOWN 0:2/01 AJAR 02/02 OPEN 203 SHUT 0:204 TI . CLOSE 101 STARTE301 STOP 102 LS2 1104 Minimum Requirements: 1. The global objective is that when the OPEN button is pressed, the door will open completely when the CLOSE button is pressed the door will close completely. 2. When START is pressed, the door is positioned in the completely closed position initialized) 3. When STOP is pressed the door halts at whatever position it is at that time. 4. When OPEN is pressed, the door, if not closing, is driven to the completely open position. 5. When DOWN is pressed, the door, if not opening, is driven to the completely closed position. 6. It is not necessary to use the AJAR, OPEN, and SHUT output lights in this exercise. Fill in the Input/Output table below then on the next page create a ladder logic programto accomplish the required sequence of events. Input Address Description OPEN CLOSE START STOP LSI IS2 Output Motor Up Motor Down Put your ladder logic program on this page. 5. Programming Exercise MOTOR UP L51 103 HO MOTOR DOWN 0:2/01 AJAR 02/02 OPEN 203 SHUT 0:204 TI . CLOSE 101 STARTE301 STOP 102 LS2 1104 Minimum Requirements: 1. The global objective is that when the OPEN button is pressed, the door will open completely when the CLOSE button is pressed the door will close completely. 2. When START is pressed, the door is positioned in the completely closed position initialized) 3. When STOP is pressed the door halts at whatever position it is at that time. 4. When OPEN is pressed, the door, if not closing, is driven to the completely open position. 5. When DOWN is pressed, the door, if not opening, is driven to the completely closed position. 6. It is not necessary to use the AJAR, OPEN, and SHUT output lights in this exercise. Fill in the Input/Output table below then on the next page create a ladder logic programto accomplish the required sequence of events. Input Address Description OPEN CLOSE START STOP LSI IS2 Output Motor Up Motor Down Put your ladder logic program on this page
