A uniform beam (length 3.0 m, weight 100 N ) is arranged as shown, and relies somewhat on friction to keep its left end from

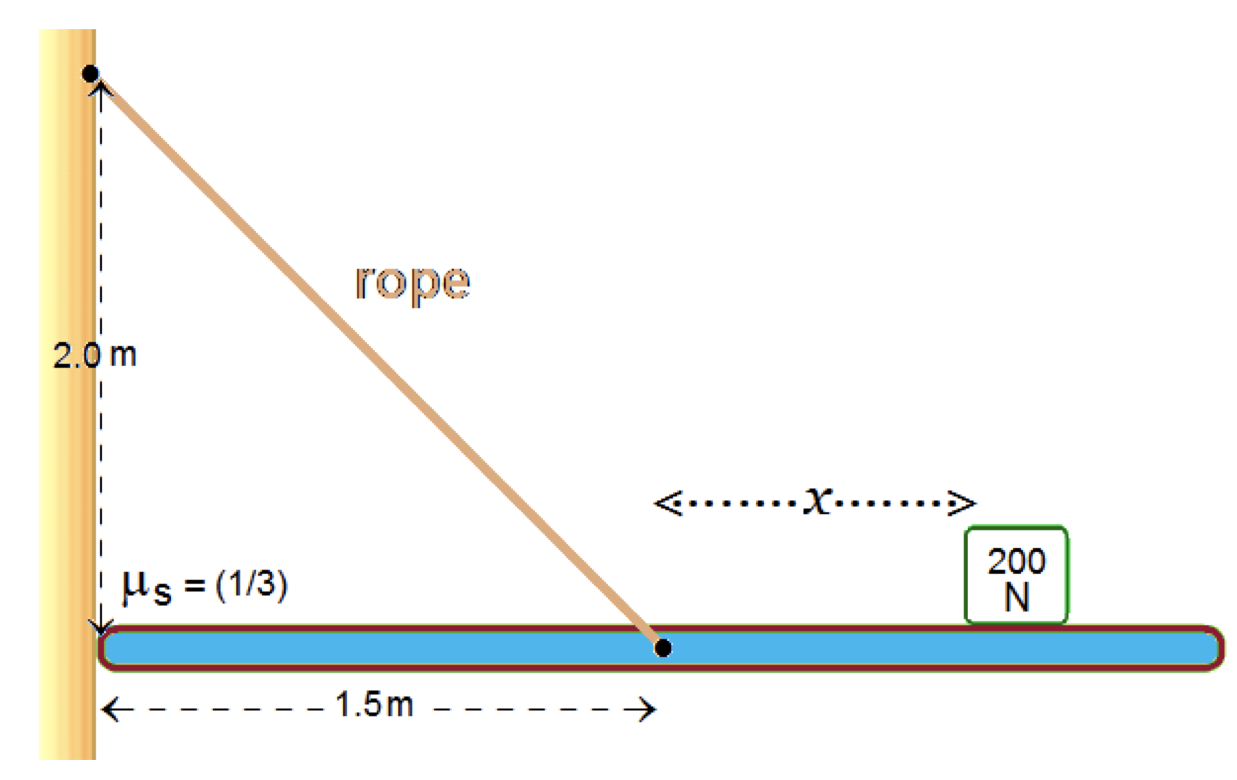

A uniform beam (length 3.0 m, weight 100 N) is arranged as shown, and relies somewhat on friction to keep its left end from slipping up the wall (because the 200 N weight tends to make the right end tip down). How far (x) can the 200 N be placed from the center before slipping occurs, and what are the tension in the rope and the normal force at the wall when that point is reached?

image text in transcribed
- rope 2.0 m 200 Hs = (1/3) N - - - - - - 1.5m
