Assume that you will develop an ATM system and the user who will use this system must to be able to do these transactions: 1.

image text in transcribed

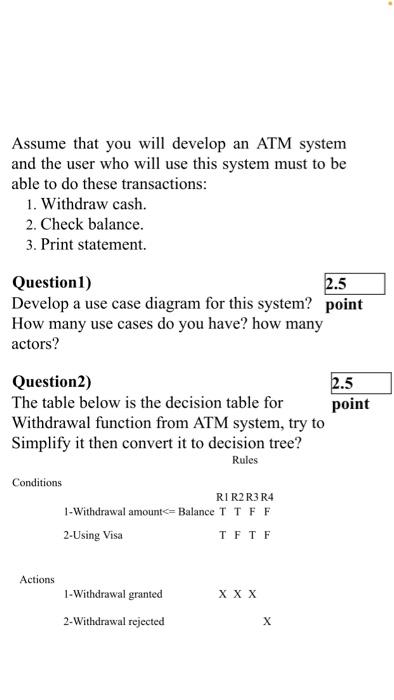

Assume that you will develop an ATM system and the user who will use this system must to be able to do these transactions: 1. Withdraw cash. 2. Check balance. 3. Print statement. Question 1) 2.5 Develop a use case diagram for this system? point How many use cases do you have? how many actors? Question2) 2.5 The table below is the decision table for point Withdrawal function from ATM system, try to Simplify it then convert it to decision tree? Rules Conditions RI R2 R3 R4 1-Withdrawal amount

Step by Step Solution

There are 3 Steps involved in it

Step: 1
