For the four input k-map and truth table give the minimal POS logic expression by exploiting don't care conditions. 4.4.36 For the 4-input truth table

For the four input k-map and truth table give the minimal POS logic expression by exploiting "don't care" conditions.

image text in transcribed

image text in transcribed

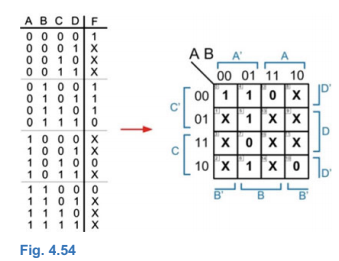

4.4.36 For the 4-input truth table and K-map in Fig. 4.54, give the minimal product of sums (POS) logic expression by exploiting "don't cares

Step by Step Solution

There are 3 Steps involved in it

Step: 1
