Question: *****In MATLAB: A weight W is supported by two cables anchored a distance Lac apart. LAC LAB LBc The cable length LAB is given, but

*****In MATLAB: *****In MATLAB: A weight W is supported by two cables anchored a

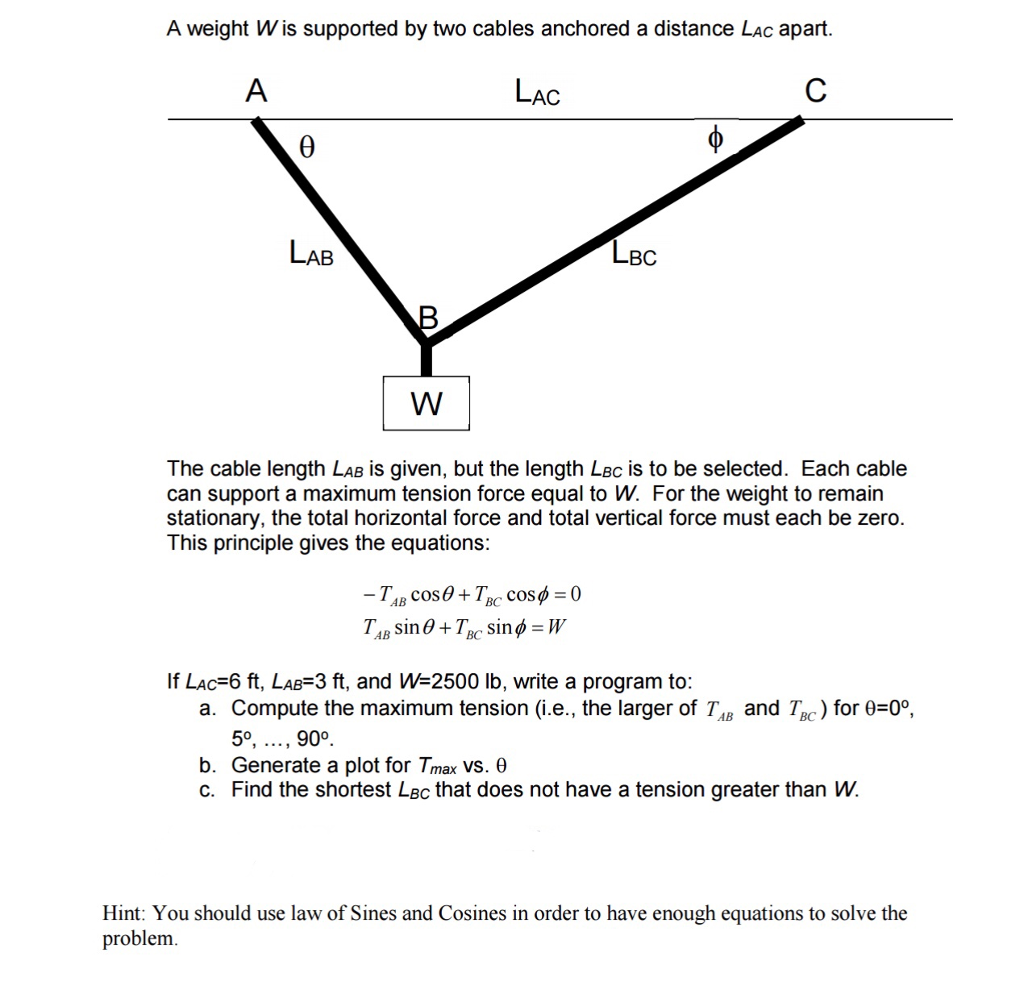

A weight W is supported by two cables anchored a distance Lac apart. LAC LAB LBc The cable length LAB is given, but the length Lsc is to be selected. Each cable can support a maximum tension force equal to W. For the weight to remain stationary, the total horizontal force and total vertical force must each be zero. This principle gives the equations: If LAC=6 ft, LAB-3 ft, and W-2500 lb, write a program to: a. Compute the maximum tension (ie, the larger of TAB and Tec) for =09 b. Generate a plot for Trax vs. c. Find the shortest Lec that does not have a tension greater than W. Hint: You should use law of Sines and Cosines in order to have enough equations to solve the
