KINDLY DERIVE EQUATIONS WITH EXPLAINATIONS AND SOLVE IT USING RK4 METHOD FOR THE DESIRED SOLUTION The following multiple reactions are happening in a catalytic reactor
KINDLY DERIVE EQUATIONS WITH EXPLAINATIONS AND SOLVE IT USING RK4 METHOD FOR THE DESIRED SOLUTION

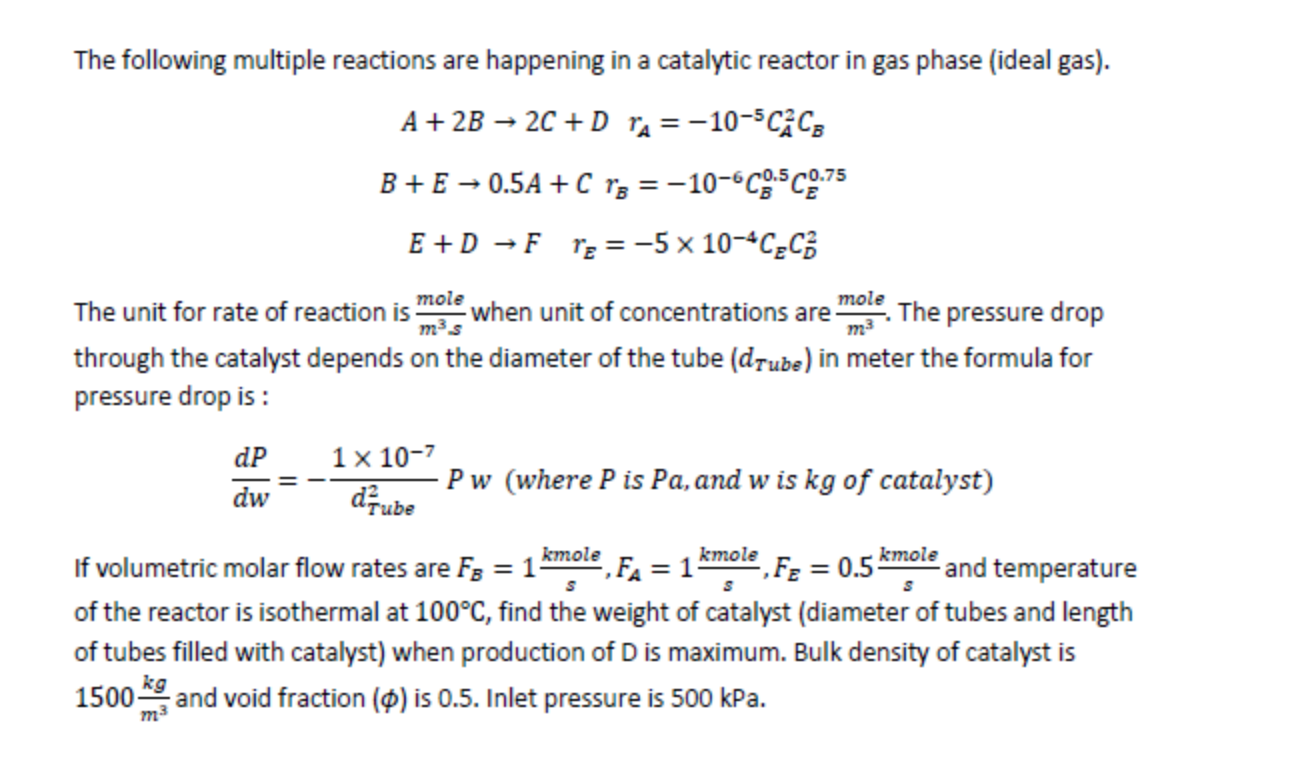

The following multiple reactions are happening in a catalytic reactor in gas phase (ideal gas). A+2B2C+DrA=105CA2CBB+E0.5A+CrB=106CB0.5CE0.75E+DFrE=5104CECD2 The unit for rate of reaction is m3smole when unit of concentrations are m3mole. The pressure drop through the catalyst depends on the diameter of the tube (dTube) in meter the formula for pressure drop is : dwdP=dTube21107Pw(wherePisPa,andwiskgofcatalyst) If volumetric molar flow rates are FB=1skmole,FA=1skmole,FE=0.5skmole and temperature of the reactor is isothermal at 100C, find the weight of catalyst (diameter of tubes and length of tubes filled with catalyst) when production of D is maximum. Bulk density of catalyst is 1500m3kg and void fraction () is 0.5 . Inlet pressure is 500kPaStep by Step Solution
