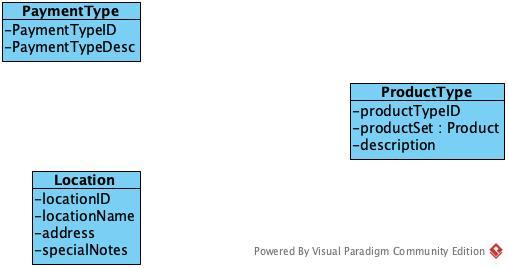

Please make a sequence diagram using the Visual paradigm. URGENTLY!!! User Story Eventually, we would like to retrieve total amounts of income paid for by
Please make a sequence diagram using the Visual paradigm. URGENTLY!!!
User Story
Eventually, we would like to retrieve total amounts of income paid for by credit card, debit card, paypal and cash. We call this Payment Type.
Acceptance Criteria:
Must be able to query Payment Type to be able to select income transactions.
Use Case Name | Change a payment type description | ||
Triggering Event | Request to change a payment description | ||
Brief Description | Allows the Owner to change a payment type description | ||
Actors | Owner | ||
Preconditions | Owner has opened the Main Menu. | ||
Post Conditions | Payment type description is updated | ||
Flow of activities | Actor | System | |
| 1. | Requests to change a payment type | Displays a list of payment types and prompts for payment type selection. |
| 2. | Selects a payment type
| Retrieves the payment type description and prompts for updates
|
| 3. | Updates description and requests to save | Verifies that description was entered. Saves the data |
Exception Conditions | Owner chooses to cancel updating the payment type description |
User Story
With our expansion, our list of locations is growing. We would like to record the address and notes about each location.
Acceptance Criteria:
Must be able to query locations.
Must be able to record locations.
Use Case Name | Change a location | ||
Triggering Event | Request to change a location | ||
Brief Description | Allows the Owner to change a location | ||
Actors | Owner | ||
Preconditions | Owner has opened the Main Menu. | ||
Post Conditions | location is updated | ||
Flow of activities | Actor | System | |
| 1. | Requests to change a location | Displays a list of locations and prompts for location selection. |
| 2. | Selects a location
| Retrieves the locations name, address and notes
|
| 3. | Updates the location and requests to save | Saves the data |
Exception Conditions | Owner chooses to cancel updating the location |
