Problem #4 (25 points) MSP430 Instructions Consider the following instructions given below. For each instruction determine changes in registers (if any) after its execution. Fill

image text in transcribed

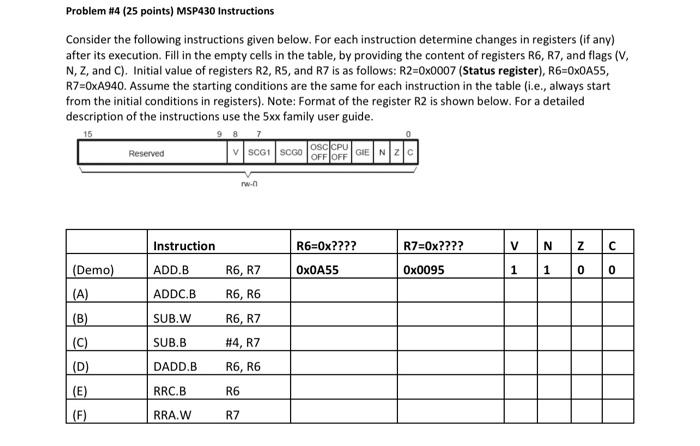

Problem \#4 (25 points) MSP430 Instructions Consider the following instructions given below. For each instruction determine changes in registers (if any) after its execution. Fill in the empty cells in the table, by providing the content of registers R6, R7, and flags (V, R7=0xA940. Assume the starting conditions are the same for each instruction in the table (i.e., always start from the initial conditions in registers). Note: Format of the register R2 is shown below. For a detailed description of the instructions use the 5xx family user guide

Step by Step Solution

There are 3 Steps involved in it

Step: 1

blur-text-image
