Project Resource Leveling Assignment 1. Draw the Activity on Node (AON) network diagram, representing the project activities and their dependencies. 2. Help me make a

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

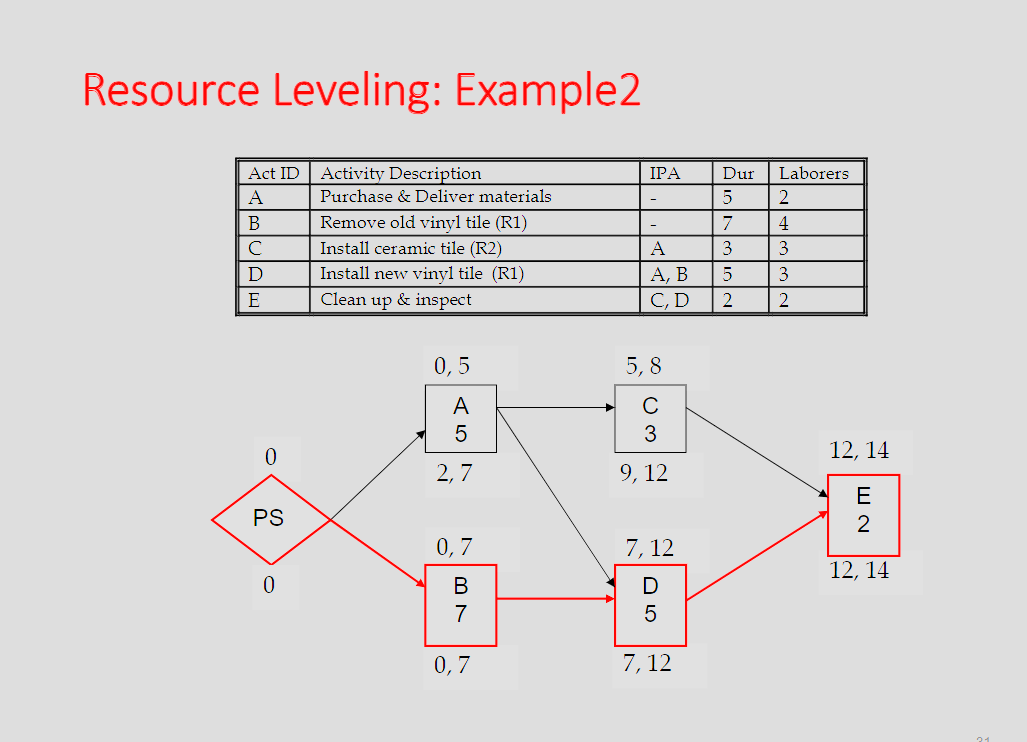

Project Resource Leveling Assignment 1. Draw the Activity on Node (AON) network diagram, representing the project activities and their dependencies.

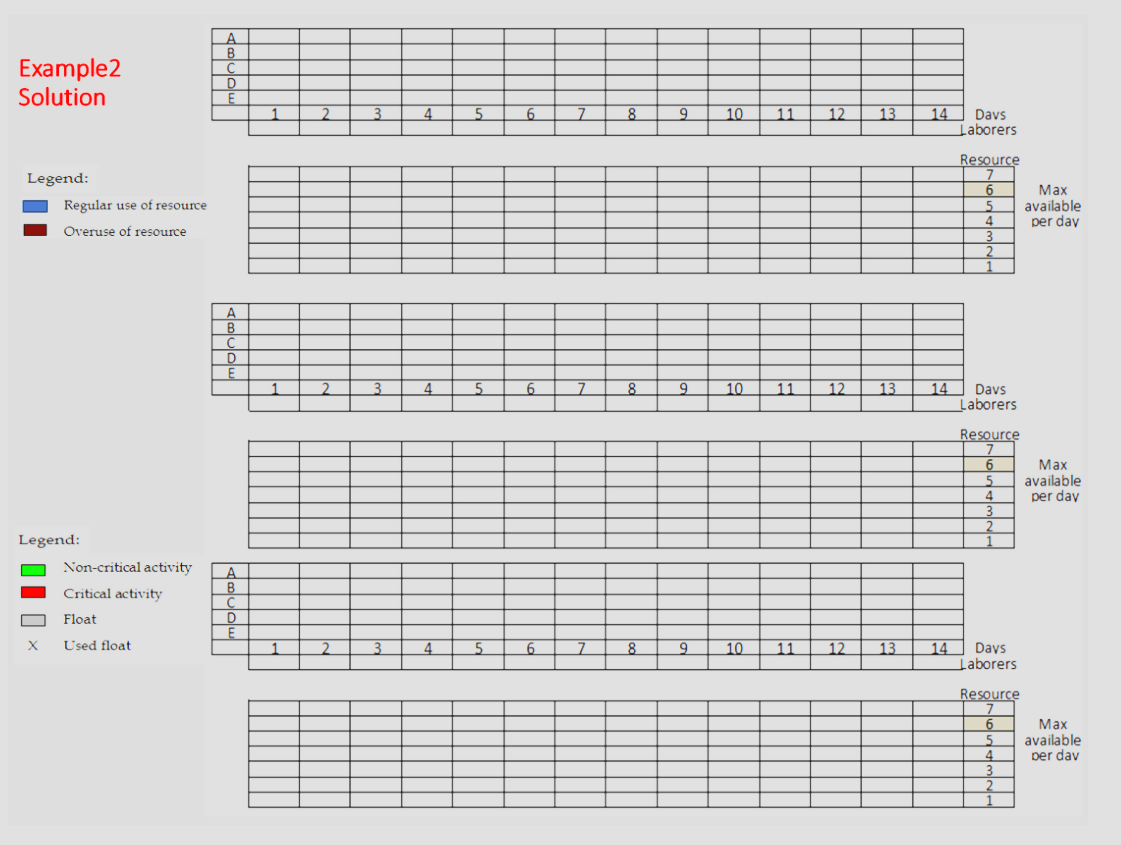

2. Help me make a bar chart and resource diagram illustrating resource allocation to the scheduled activities (refer to class example 2 for drawing a resource diagram and creating a legend).

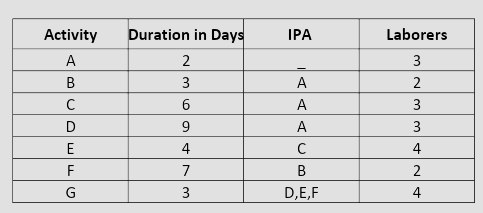

3. Adjust (level) the resources so that the maximum number of laborers used per day does not exceed seven.

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

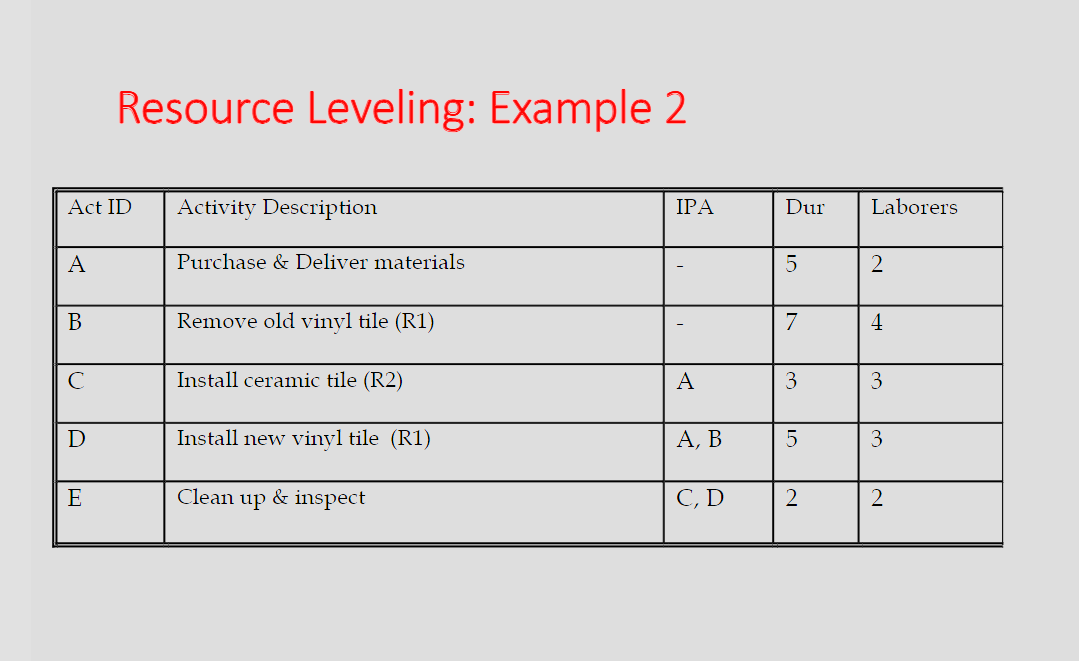

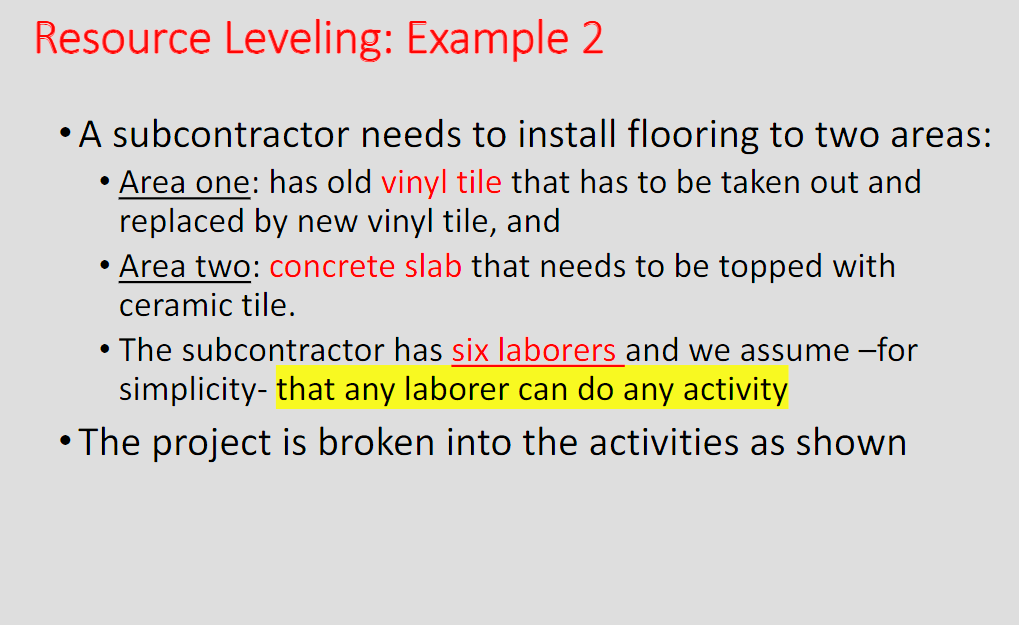

\fResource Leveling: Example 2 * A subcontractor needs to install flooring to two areas: * Area one: has old vinyl tile that has to be taken out and replaced by new vinyl tile, and * Area two: concrete slab that needs to be topped with ceramic tile. * The subcontractor has six laborers and we assume for simplicity- that any laborer can do any activity * The project is broken into the activities as shown Resource Leveling: Example 2 Activity Description Purchase & Deliver materials Remove old vinvl tile (R Install ceramic tile (R Install new vinvl tile (R1) Clean up & inspect C,D ' Resource Leveling: Example2 | Activity Description Purchase & Deliver materials m Remove old vinyl tile (R1) | | | C Install ceramic tile (R2) l m Install new vinyl tile (R1) Clean up & inspect Example2 mono Solution 8 9 10 11 12 13 14 Davs Laborers Resource Legend: Max Regular use of resource available per day Overuse of resource 8 9 10 11 12 13 14 Davs Laborers Resource Max available per day Legend: Non-critical activity Critical activity mon looks Float X Used float 3 5 6 8 9 10 11 12 13 14 Days Laborers Resource Max available per dav
