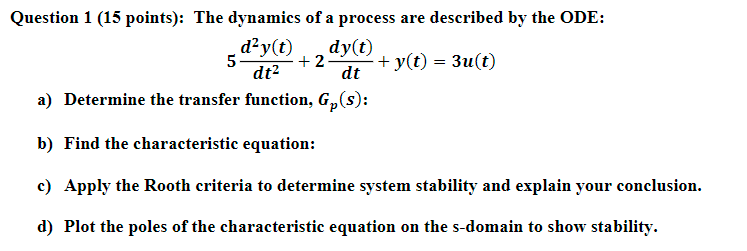

Question 1 ( 1 5 points ) : The dynamics of a process are described by the ODE: 5 d 2 y ( t )

Question 1(15 points): The dynamics of a process are described by the ODE:
5d2y(t)dt2+2dy(t)dt+y(t)=3u(t)
a) Determine the transfer function, Gp(s) :
b) Find the characteristic equation:
c) Apply the Rooth criteria to determine system stability and explain your conclusion.
d) Plot the poles of the characteristic equation on the s-domain to show stability.
image text in transcribed
