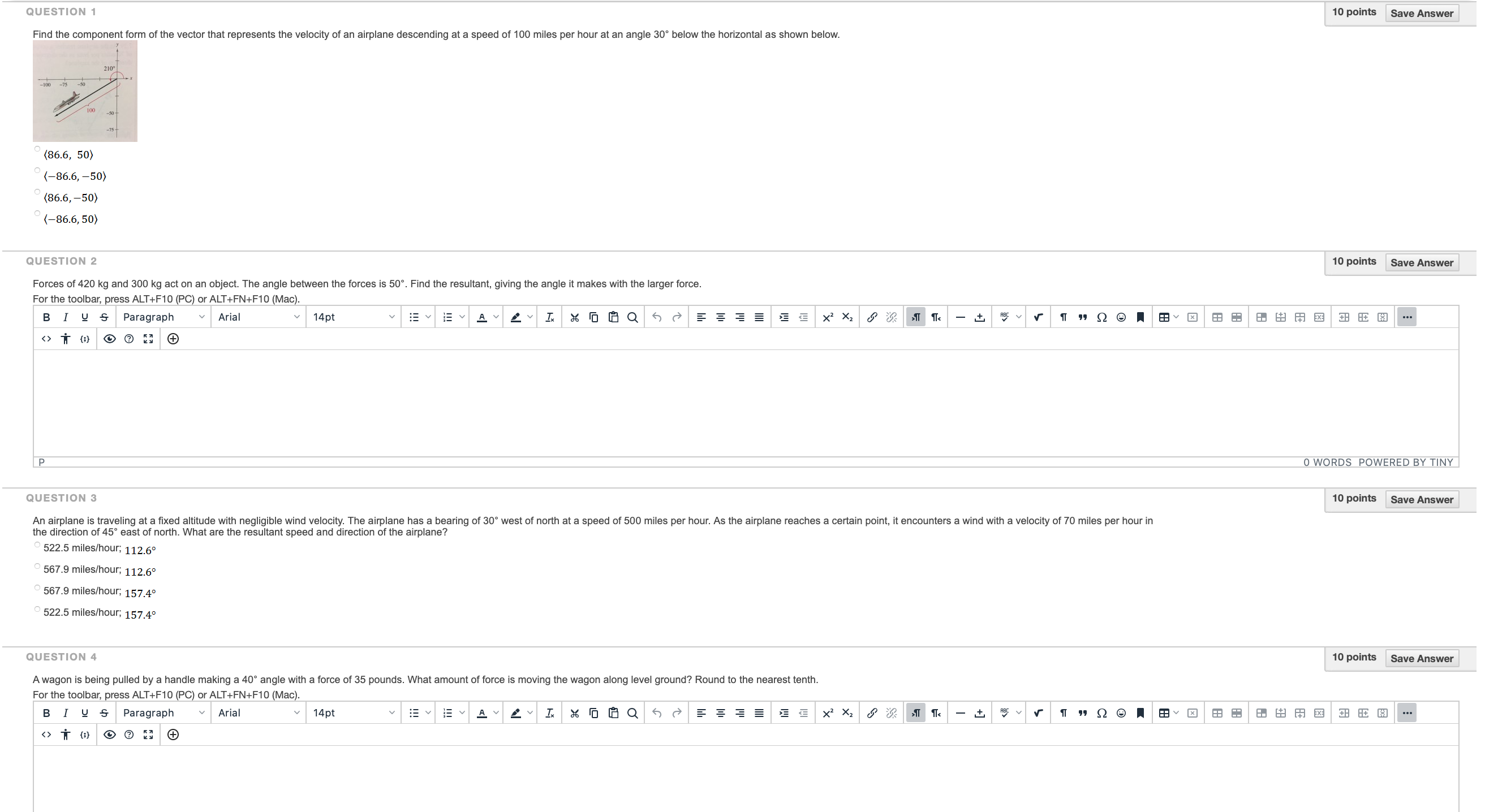

QUESTION 1 10 points Save Answer Find the component form of the vector that represents the velocity of an airplane descending at a speed of 100 miles per hour at an angle 30 below the horizontal as shown below. -100 (86.6, 50) (-86.6, -50) (86.6, -50) (-86.6, 50) QUESTION 2 10 points Save Answer Forces of 420 kg and 300 kg act on an object. The angle between the forces is 50. Find the resultant, giving the angle it makes with the larger force. For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac). B I y S Paragraph v Arial 14pt O WORDS POWERED BY TINY QUESTION 3 10 points Save Answer An airplane is traveling at a fixed altitude with negligible wind velocity. The airplane has a bearing of 30 west of north at a speed of 500 miles per hour. As the airplane reaches a certain point, it encounters a wind with a velocity of 70 miles per hour in the direction of 45 east of north. What are the resultant speed and direction of the airplane? 522.5 miles/hour; 112.60 567.9 miles/hour; 112.6 567.9 miles/hour; 157.40 522.5 miles/hour; 157.40 QUESTION 4 10 points Save Answer A wagon is being pulled by a handle making a 40 angle with a force of 35 pounds. What amount of force is moving the wagon along level ground? Round to the nearest tenth. For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac). B I Y S Paragraph v Arial 14ptQUESTION 5 10 points Save Answer A ship sails 80 for 120 nautical miles, then 200 for 200 nautical miles. How far is it then from the starting point? For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac). B I Y S Paragraph v Arial 14pt O WORDS POWERED BY TINY QUESTION 6 10 points Save Answer A gun with a muzzle velocity of 1200 feet per second is fired at an angle of 4 with the horizontal. Find the vertical and horizontal components of the velocity. Horizontal: -2 fu/sec Vertical: 3.5 fu/sec Horizontal: 3.5 fu/sec Vertical: -2 fu/sec Horizontal: 83.7 ft/sec Vertical: 1197.1 ft/sec Horizontal: 1197.1 ft/sec Vertical: 83.7 ft/sec QUESTION 7 10 points Save Answer Two forces of 130 newtons and 90 newtons are acting on an object so that the angle between them is 54. Find the resultant force to the nearest tenth. 11,245.8 newtons . 106.0 newtons 38,754.2 newtons . 169.9 newtons QUESTION 8 10 points Save Answer Two forces of 5 kg and 12 kg act on an object at right angles. Find the magnitude of the resultant and the angle it makes with the smaller force. 13 kg; 23 10.9 kg; 67 13 kg; 67. 169 kg; 23 QUESTION 9 10 points Save Answer Two forces of 30 kg and 40 kg act on an object at right angles. Find the magnitude of the resultant and the angle it makes with the smaller force. For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac) B I Y S Paragraph Arial 14pt10 points Save Answer QUESTION 10 A balloon is rising 10 fu/sec while a wind is blowing 5 ft/sec. Find the speed of the balloon and the angle it makes with the ground. 11.2 ft/sec; 23.6 0 11.2 ft/sec; 63.40 . 125 fu/sec; 63.40 8.7 ft/sec; 90
