Question 3: A frame is subjected to a distributed load on member AB and a point load at Point C. You are required to determine:

image text in transcribed
image text in transcribed

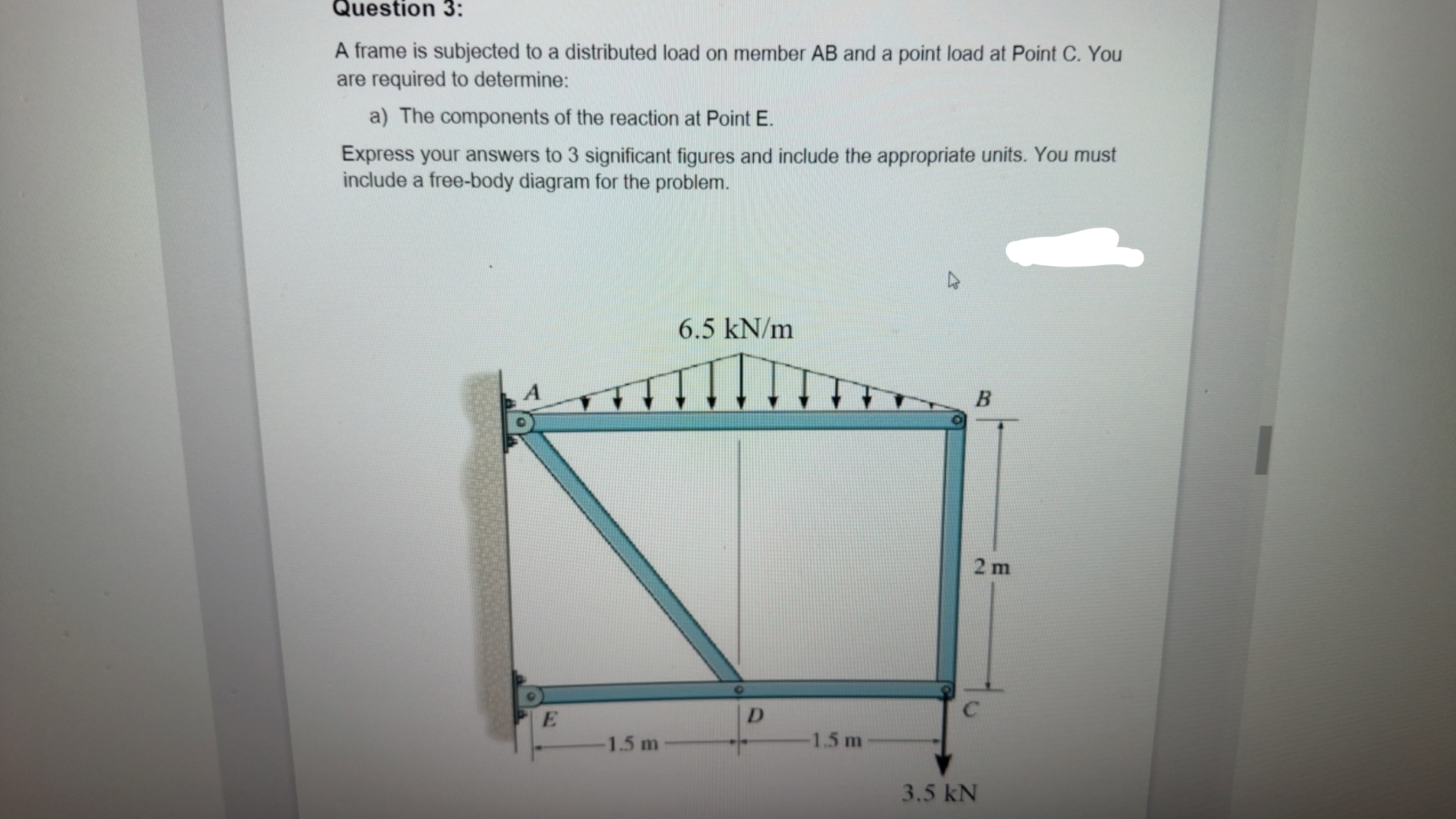

Question 3: A frame is subjected to a distributed load on member AB and a point load at Point C. You are required to determine: a) The components of the reaction at Point E. Express your answers to 3 significant figures and include the appropriate units. You must include a free-body diagram for the problem. 6.5 kN/m B 2 m E D C 1.5 m 1.5 m 3.5 kN
