Steam generated ( stream 2 ) in a power plant at a pressure of 8 6 0 0 Kpa and at a temperature of 5

Steam generated ( stream 2)in a power plant at a pressure of 8600 Kpa and at a temperature of 500C is fed to a turbine ( stream 3)enters a condenser at 10 kPa ,where it is condensed to saturated liquid ( stream 4),which is then pumped to the boiler ( stream 1).The mass flow rate of steam is 84.75kg / s and the surrounding temperature is 25C .Thermodynamic properties of the streams are given in the schematic diagram of the cycle shown below. Make the THERMODYNAMIC ANALYSIS of the system and calculate the THERMODYNAMIC EFFICIENCY.( Fill in the blank fields in the table 2)

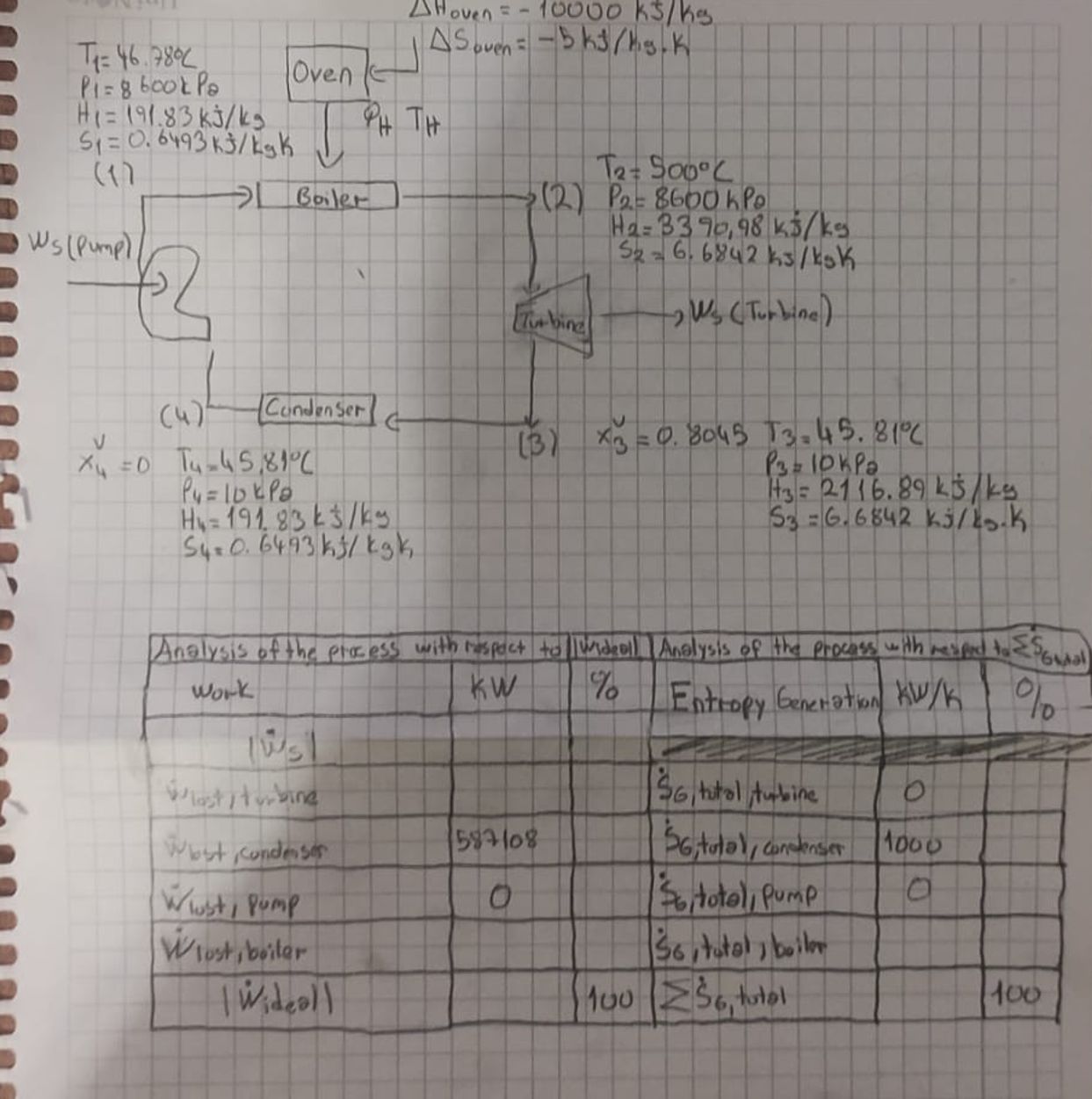

image text in transcribed
