Using V 9 mV and given the voltage across an inductor L 10 mH as shown in Fig P6 25 determine the waveform for the

image text in transcribed
image text in transcribed

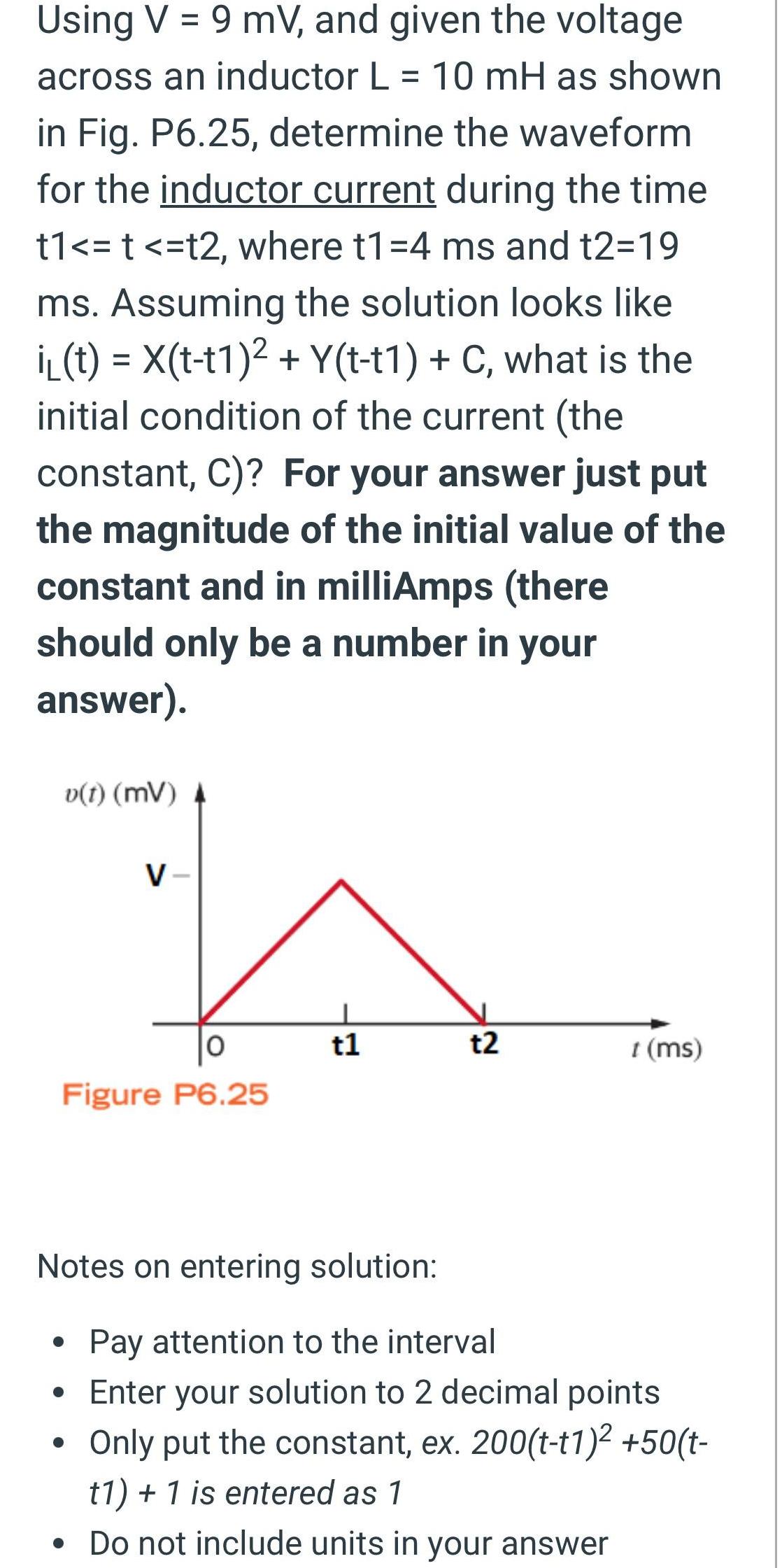

Using V 9 mV and given the voltage across an inductor L 10 mH as shown in Fig P6 25 determine the waveform for the inductor current during the time t1 t t2 where t1 4 ms and t2 19 ms Assuming the solution looks like iL t X t t1 Y t t1 C what is the initial condition of the current the constant C For your answer just put the magnitude of the initial value of the constant and in milliAmps there should only be a number in your answer v 1 mv A Figure P6 25 V Notes on entering solution t1 t2 Pay attention to the interval Enter your solution to 2 decimal points Only put the constant ex 200 t t1 50 t t1 1 is entered as 1 Do not include units in your answer 1 ms
