Your final project task is to specify a suitable pump and determine operating conditions based on the information provided to you in the Course

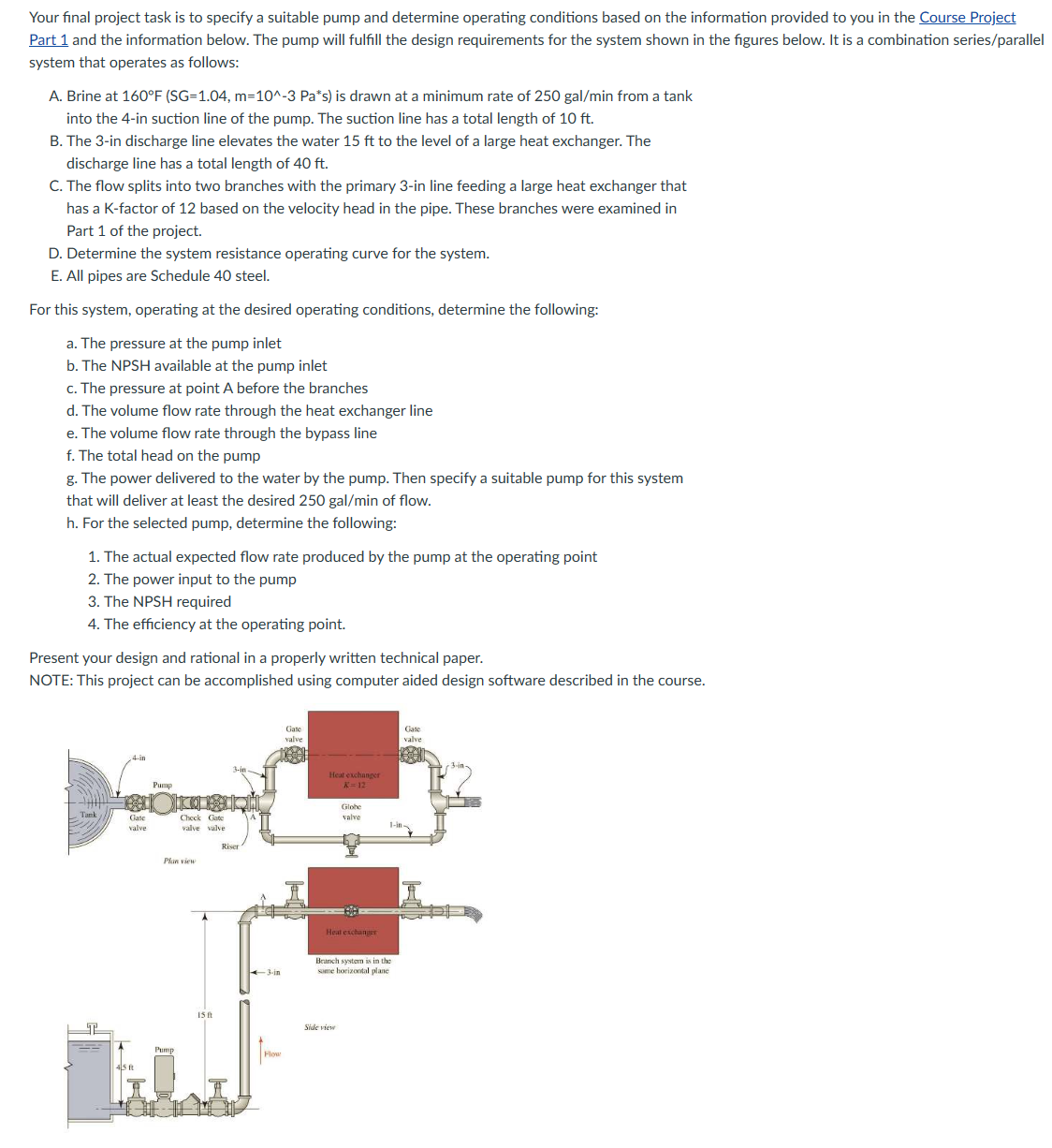

Your final project task is to specify a suitable pump and determine operating conditions based on the information provided to you in the Course Project Part 1 and the information below. The pump will fulfill the design requirements for the system shown in the figures below. It is a combination series/parallel system that operates as follows: A. Brine at 160F (SG=1.04, m=10^-3 Pa*s) is drawn at a minimum rate of 250 gal/min from a tank into the 4-in suction line of the pump. The suction line has a total length of 10 ft. B. The 3-in discharge line elevates the water 15 ft to the level of a large heat exchanger. The discharge line has a total length of 40 ft. C. The flow splits into two branches with the primary 3-in line feeding a large heat exchanger that has a K-factor of 12 based on the velocity head in the pipe. These branches were examined in Part 1 of the project. D. Determine the system resistance operating curve for the system. E. All pipes are Schedule 40 steel. For this system, operating at the desired operating conditions, determine the following: a. The pressure at the pump inlet b. The NPSH available at the pump inlet c. The pressure at point A before the branches d. The volume flow rate through the heat exchanger line e. The volume flow rate through the bypass line f. The total head on the pump g. The power delivered to the water by the pump. Then specify a suitable pump for this system that will deliver at least the desired 250 gal/min of flow. h. For the selected pump, determine the following: 1. The actual expected flow rate produced by the pump at the operating point 2. The power input to the pump 3. The NPSH required 4. The efficiency at the operating point. Present your design and rational in a properly written technical paper. NOTE: This project can be accomplished using computer aided design software described in the course. 4-in 3-in Pump Tank Gate valve Check Gate valve valve Riser Plan view Pump Gate valve Heat exchanger K-12 Glohe valve 1-in- -3-in Heat exchanger Branch system is in the same horizontal plane Flow Side view Gate valve 3-in-
