Question: 6 . 6 5 For the system shown in Fig. P 6 . 6 5 , calculate ( a ) the volume flow rate of

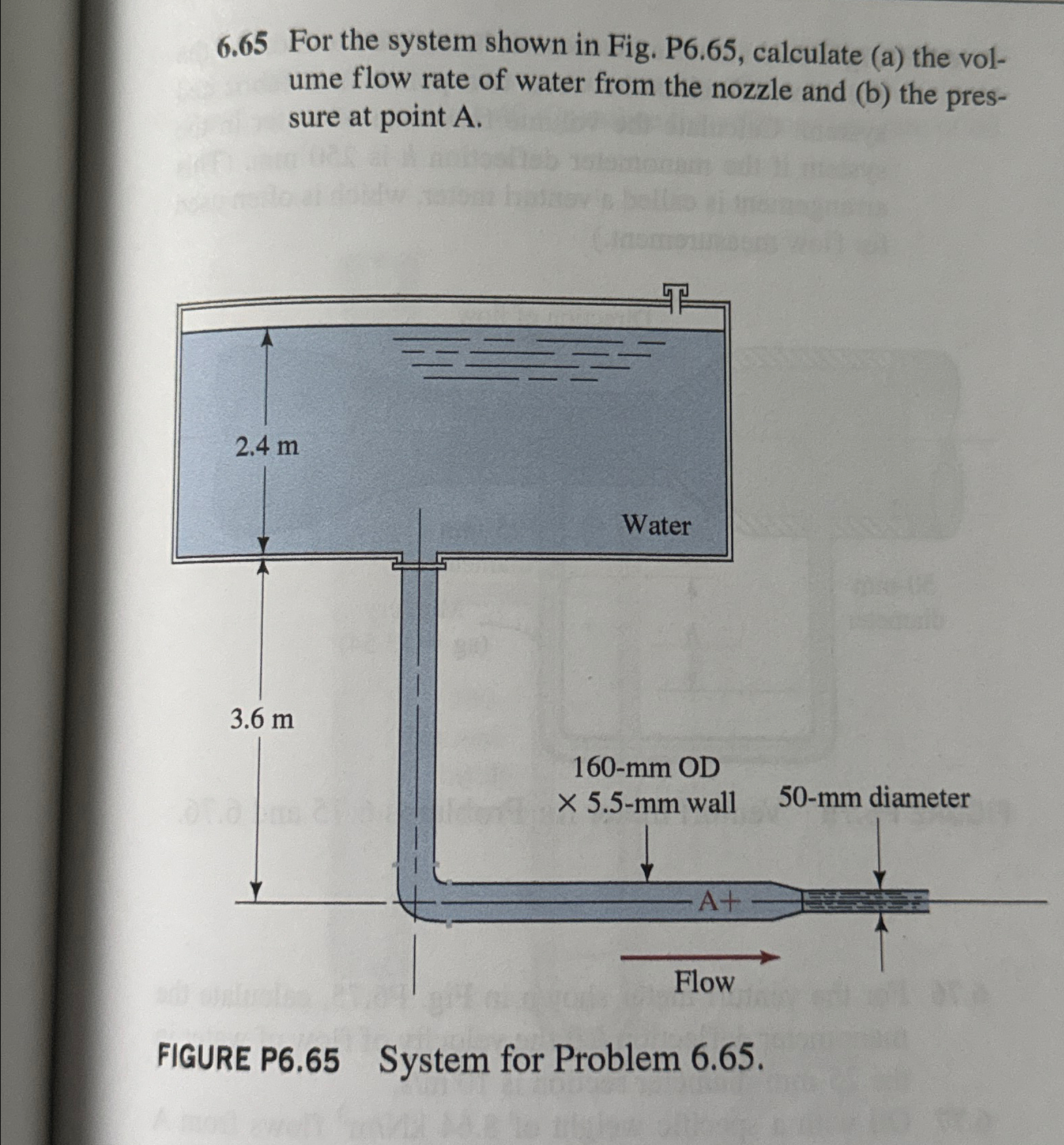

6.65 For the system shown in Fig. P6.65, calculate (a) the volume flow rate of water from the nozzle and (b) the pressure at point A.
FIGURE P6.65 System for Problem 6.65.
6 . 6 5 For the system shown in Fig. P 6 . 6 5 ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
