Here is the used code but it is incomplete, please fix it and put the missing:

#include "IRremote.h"

/*-----( Declare Constants )-----*/ int receiver = 13; // pin 1 of IR receiver to Arduino digital pin 10

/*-----( Declare objects )-----*/

const int latchPin = 8; const int clockPin = 12; const int dataPin = 11;

IRrecv irrecv(receiver); // create instance of 'irrecv' decode_results results; // create instance of 'decode_results' /*-----( Declare Variables )-----*/

unsigned char lookup_7seg[] = {0x3F, 0x06, 0x5B, 0x4F, 0x66, 0x6D, 0x7D, 0x07, 0x7F, 0x6F, 0x80}; void setup() /*----( SETUP: RUNS ONCE )----*/ {

pinMode(latchPin, OUTPUT); pinMode(clockPin, OUTPUT); pinMode(dataPin, OUTPUT); Serial.begin(9600); Serial.println("IR Receiver Raw Data + Button Decode Test"); irrecv.enableIRIn(); // Start the receiver

}/*--(end setup )---*/

void loop() /*----( LOOP: RUNS CONSTANTLY )----*/ { if (irrecv.decode(&results)) // have we received an IR signal?

{ Serial.println(results.value, HEX); // UN Comment to see raw values translateIR(); irrecv.resume(); // receive the next value } }/* --(end main loop )-- */ // displays the dice number on the 7-seg display void DiceNumber(unsigned char num) { digitalWrite(latchPin, LOW); shiftOut(dataPin, clockPin, MSBFIRST, lookup_7seg[num]); digitalWrite(latchPin, HIGH); delay(1000); digitalWrite(latchPin, LOW); shiftOut(dataPin, clockPin, MSBFIRST, lookup_7seg[10]); digitalWrite(latchPin, HIGH); delay(50);

}

/*-----( Declare User-written Functions )-----*/ void translateIR() // takes action based on IR code received

{

switch(results.value)

{ case 0xFF6897: Serial.println(" 0 "); DiceNumber(0); break;

case 0xFF30CF: Serial.println(" 1 "); DiceNumber(1); break;

case 0xFF18E7: Serial.println(" 2 "); DiceNumber(2); break;

case 0xFF7A85: Serial.println(" 3 "); DiceNumber(3); break;

case 0xFF10EF: Serial.println(" 4 "); DiceNumber(4); break;

case 0xFF38C7: Serial.println(" 5 "); DiceNumber(5); break;

case 0xFF5AA5: Serial.println(" 6 "); DiceNumber(6); break;

case 0xFF42BD: Serial.println(" 7 "); DiceNumber(7); break;

case 0xFF4AB5: Serial.println(" 8 "); DiceNumber(8); break;

case 0xFF52AD: Serial.println(" 9 "); DiceNumber(9); break;

default: Serial.println(" other button ");

}

} //END translateIR

/* ( THE END ) */

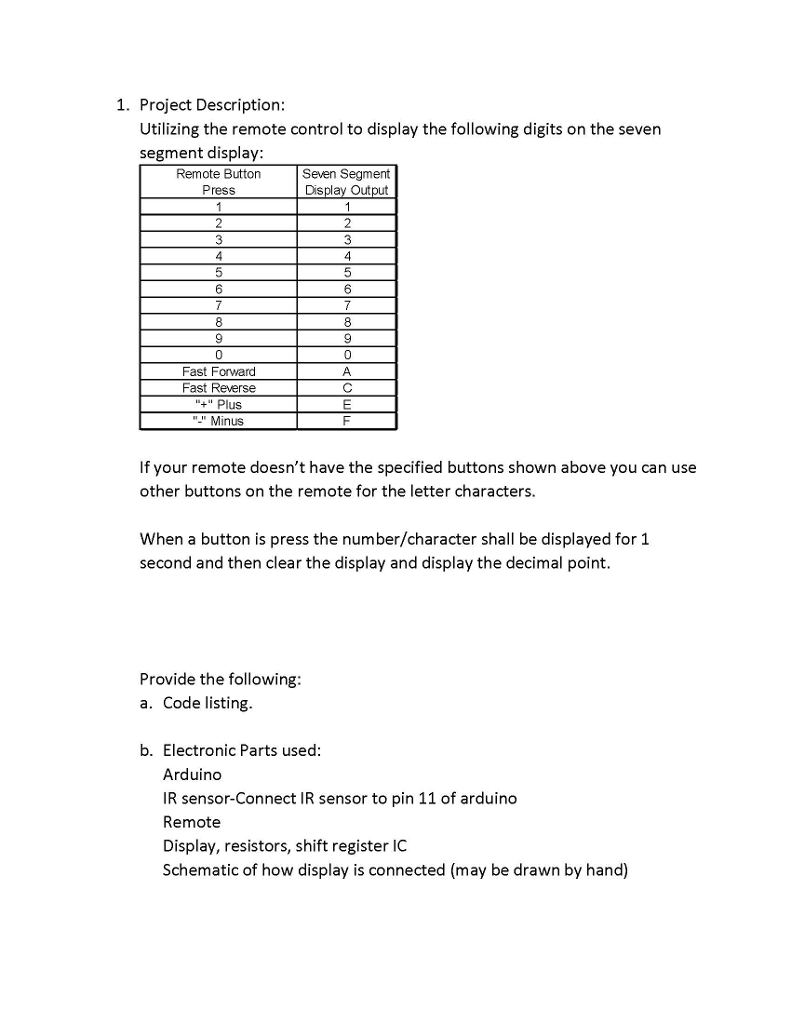

1. Project Description: Utilizing the remote control to display the following digits on the seven segment display Remote Button Press Seven Segment Display Out 4 5 Fast Forward Fast Reverse " Plus "MinuS If your remote doesn't have the specified buttons shown above you can use other buttons on the remote for the letter characters. When a button is press the number/character shall be displayed for 1 second and then clear the display and display the decimal point Provide the following a. Code listing b. Electronic Parts used: Arduino IR sensor-Connect IR sensor to pin 11 of arduino Remote Display, resistors, shift register IC Schematic of how display is connected (may be drawn by hand) 1. Project Description: Utilizing the remote control to display the following digits on the seven segment display Remote Button Press Seven Segment Display Out 4 5 Fast Forward Fast Reverse " Plus "MinuS If your remote doesn't have the specified buttons shown above you can use other buttons on the remote for the letter characters. When a button is press the number/character shall be displayed for 1 second and then clear the display and display the decimal point Provide the following a. Code listing b. Electronic Parts used: Arduino IR sensor-Connect IR sensor to pin 11 of arduino Remote Display, resistors, shift register IC Schematic of how display is connected (may be drawn by hand)
