Need help with multi-cycle datapath modification Modify the multi-cycle datapath to implement the lwa0' instruction from the previous question. Part a) How many clock cycles

Need help with multi-cycle datapath modificationimage text in transcribed

image text in transcribed

image text in transcribed

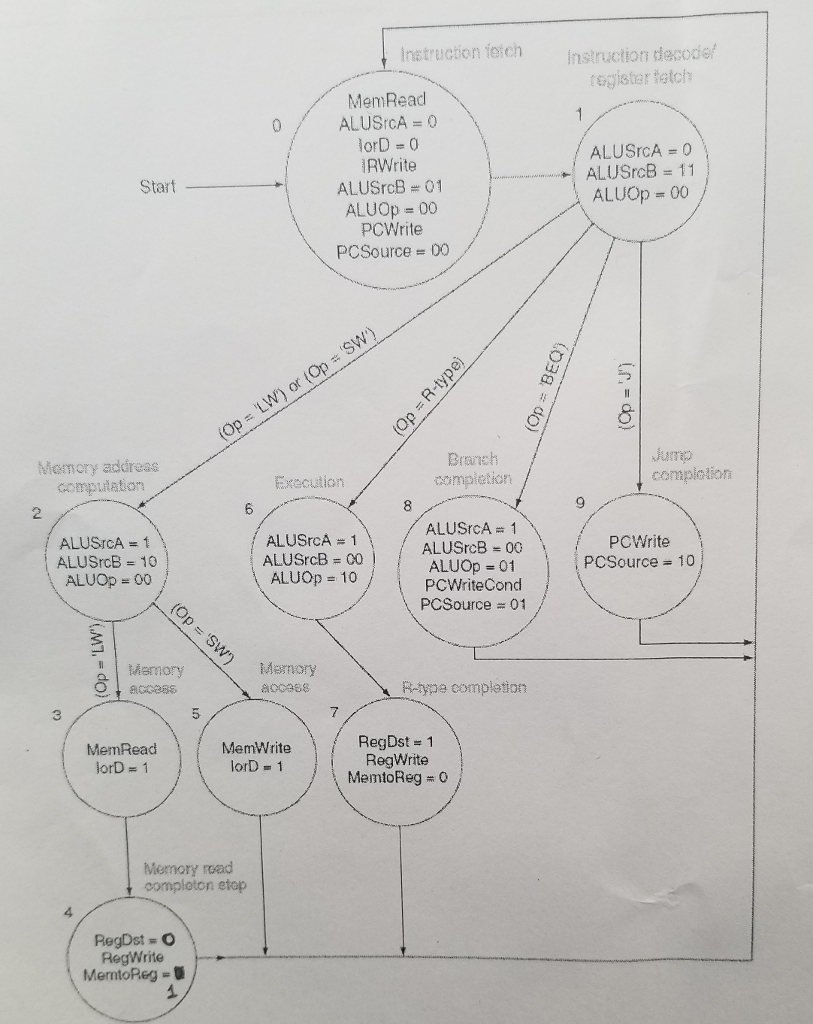

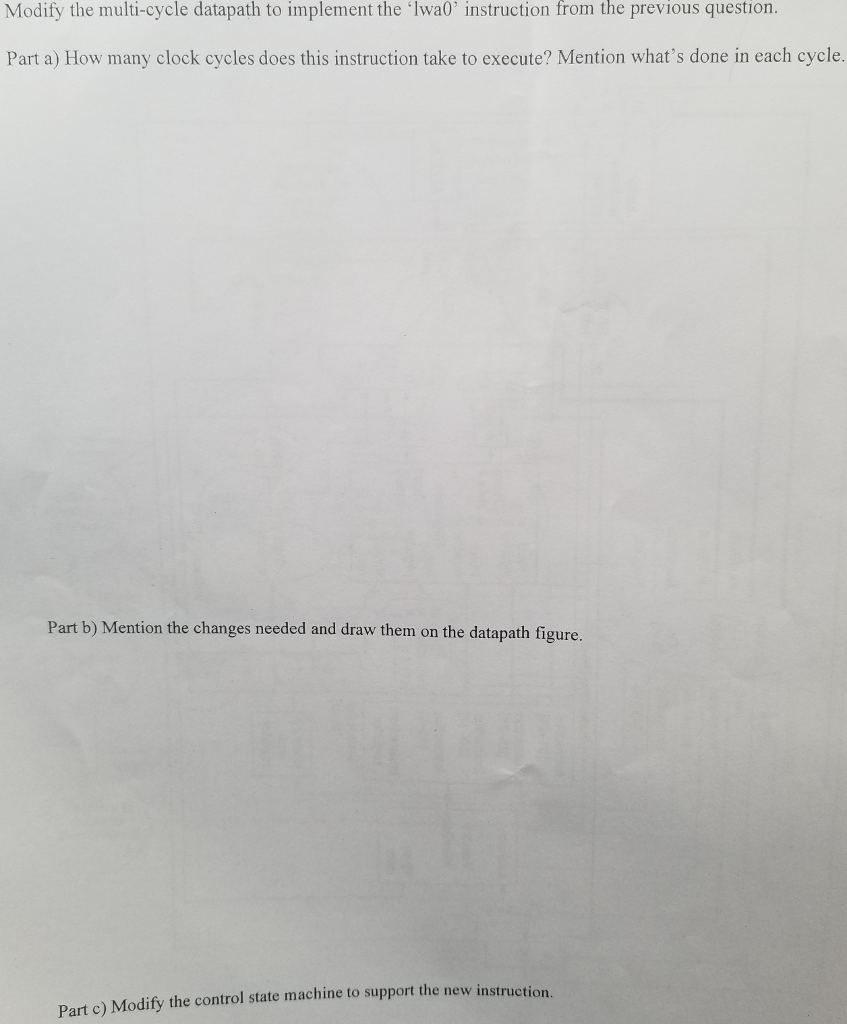

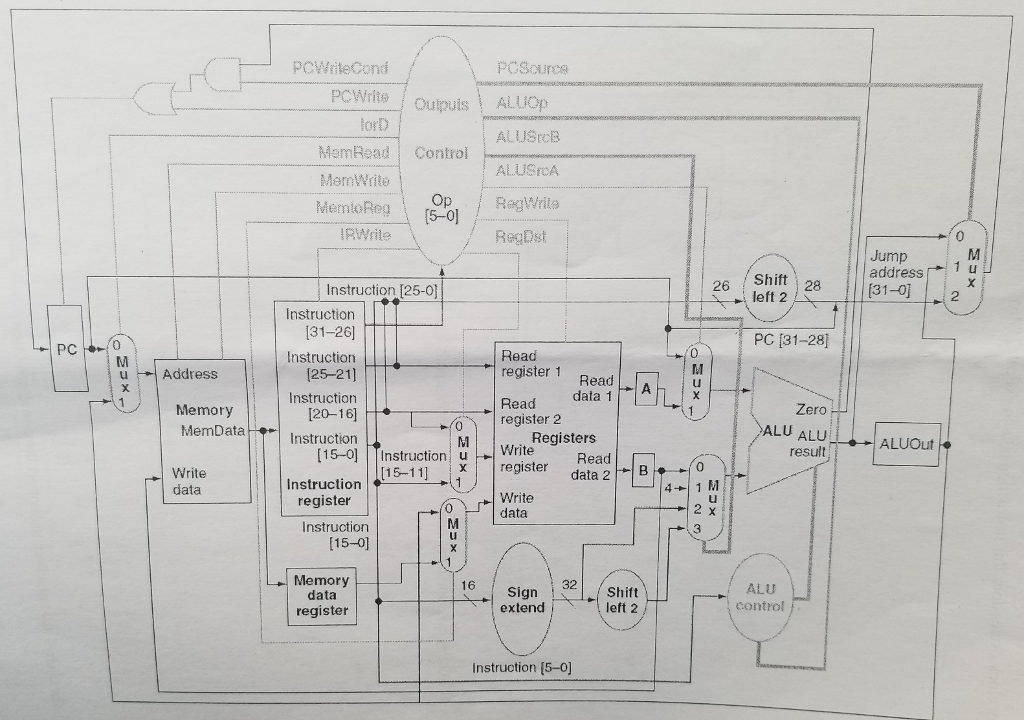

Modify the multi-cycle datapath to implement the "lwa0' instruction from the previous question. Part a) How many clock cycles does this instruction take to execute? Mention what's done in each cycle. Part b) Mention the changes needed and draw them on the datapath figure. Part c) Modify the control state machine to support the new instruction Modify the multi-cycle datapath to implement the "lwa0' instruction from the previous question. Part a) How many clock cycles does this instruction take to execute? Mention what's done in each cycle. Part b) Mention the changes needed and draw them on the datapath figure. Part c) Modify the control state machine to support the new instruction
