Question

1 Approved Answer

Please ONLY answer if you are 100% sure it's right, last guy had a and e right and all the others wrong.Thank you for your

Please ONLY answer if you are 100% sure it's right, last guy had a and e right and all the others wrong.Thank you for your help!

image text in transcribed

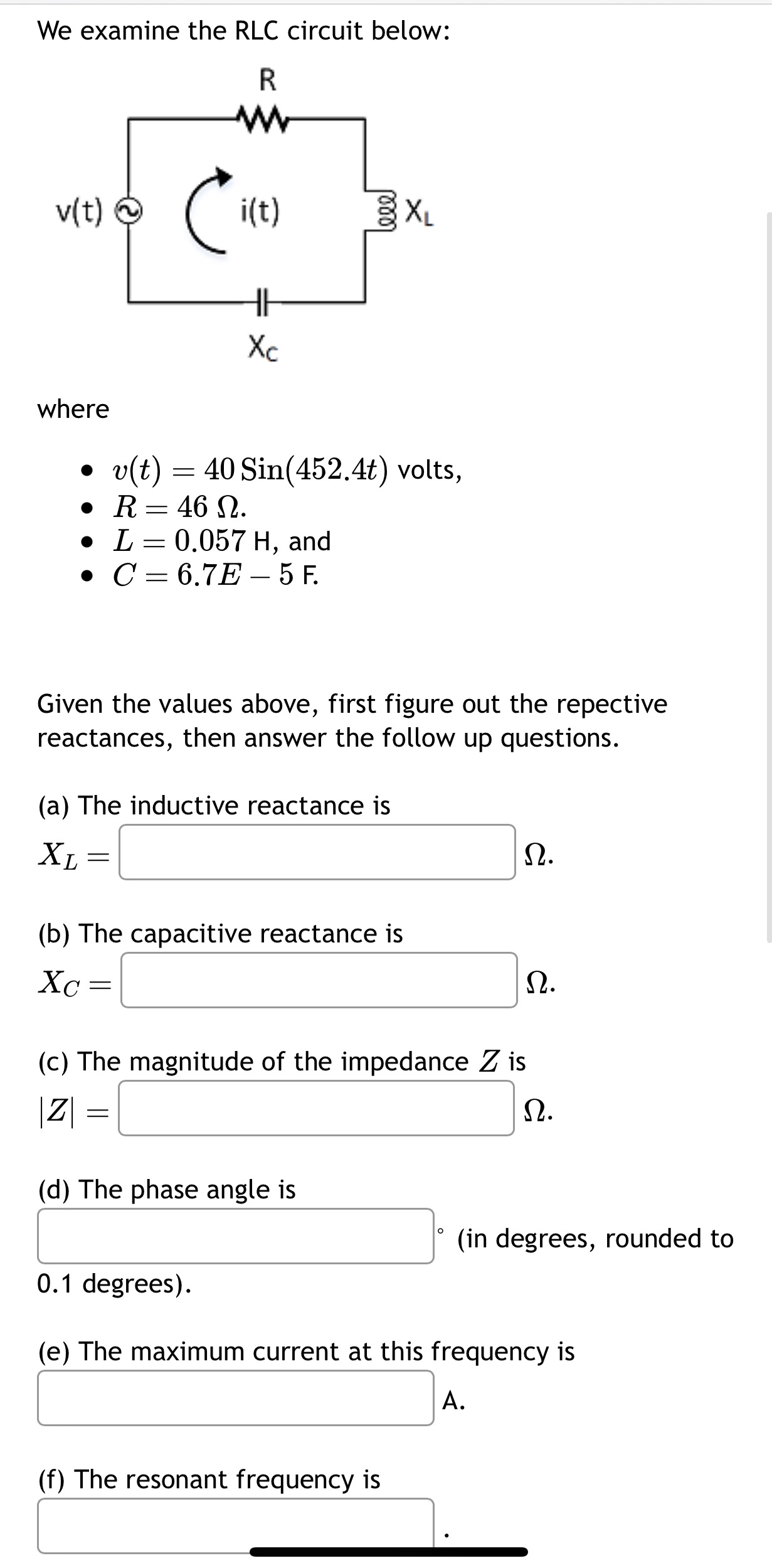

We examine the RLC circuit below: R v(t) i(t) Xc where . v(t) = 40 Sin(452.4t) volts, . R = 46 0. . L = 0.057 H, and . C =6.7E -5 F. Given the values above, first figure out the repective reactances, then answer the follow up questions. (a) The inductive reactance is XL = n. (b) The capacitive reactance is XC = n. (c) The magnitude of the impedance Z is IZ = n. (d) The phase angle is (in degrees, rounded to 0.1 degrees). (e) The maximum current at this frequency is A. (f) The resonant frequency is

Step by Step Solution

There are 3 Steps involved in it

Step: 1
