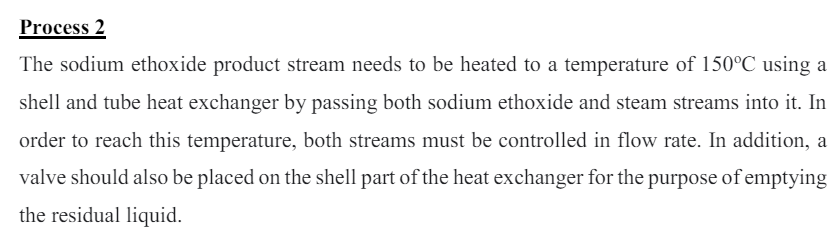

Process $2$

The sodium ethoxide product stream needs to be heated to a temperature of $150C$ using a

shell and tube heat exchanger by passing both sodium ethoxide and steam streams into it$.$ In

order to reach this temperature, both streams must be controlled in flow rate. In addition, a

valve should also be placed on the shell part of the heat exchanger for the purpose of emptying

the residual liquid.

draw the block flow diagram and find the suitable valve for the process
