Question

1 Approved Answer

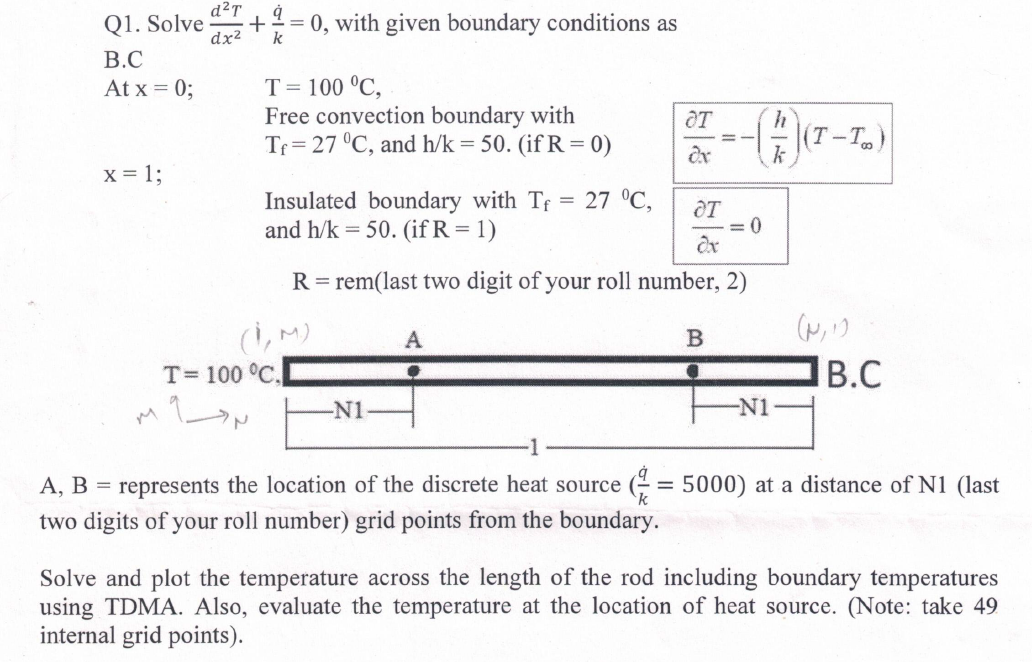

Q 1 . Solve d 2 T d x 2 + ( q ) k = 0 , with given boundary conditions as B .

Q1. Solve d2Tdx2+(q)k=0, with given boundary conditions as
B.C
Atx=0;,T=100C,
Free convection boundary with
Tf=27C, andhk=50.(ifR=0)
x=1;
Insulated boundary with Tf=270C,delTdelx=0
andhk=50.(ifR=1)
R= rem(last two digit of your roll number, 2)
A, B = represents the location of the discrete heat source (qk=5000) at a distance of N1(last
two digits of your roll number) grid points from the boundary.
Solve and plot the temperature across the length of the rod including boundary temperatures
using TDMA. Also, evaluate the temperature at the location of heat source. (Note: take 49
internal grid points)Wr.
