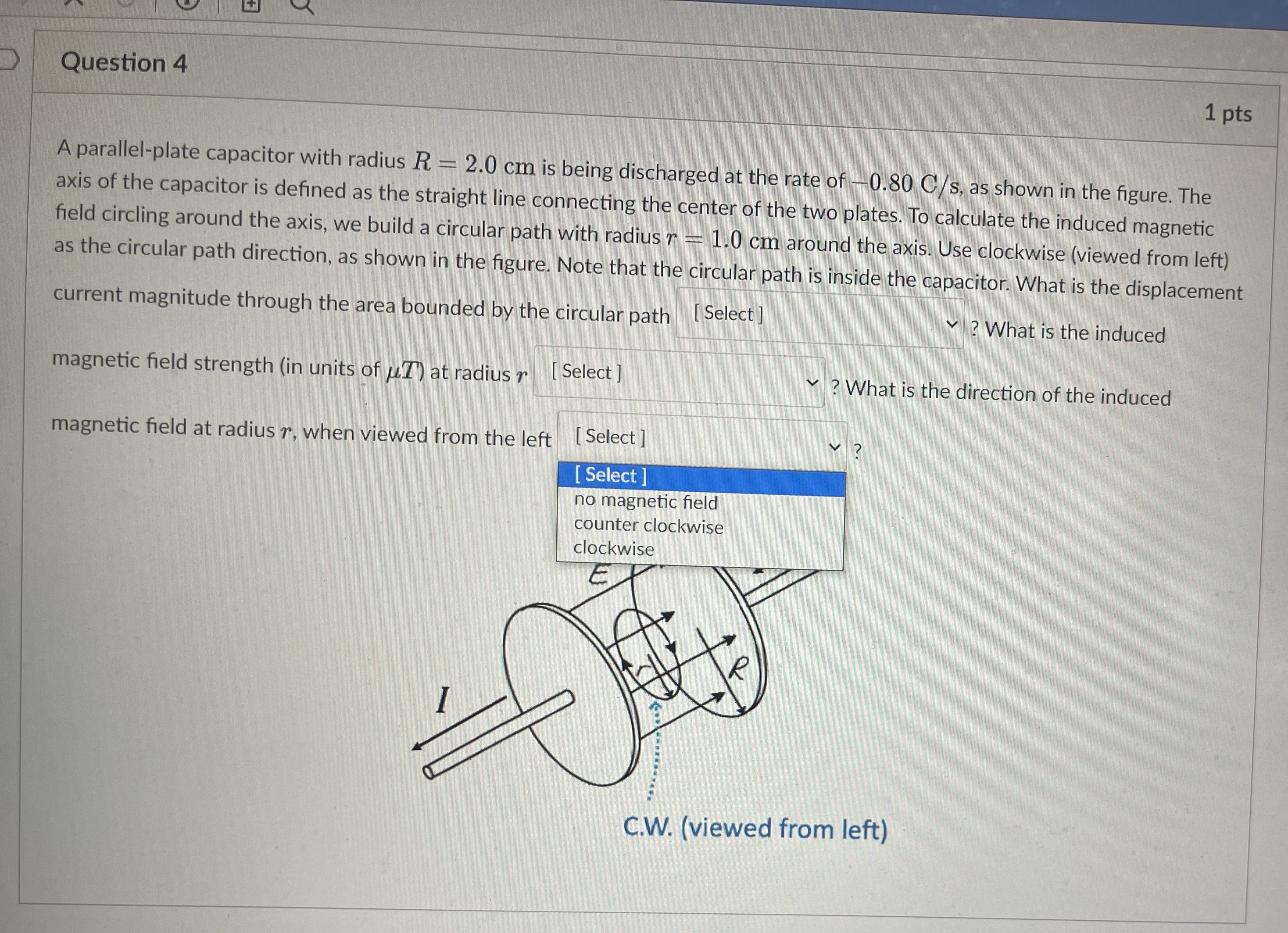

Question 4 1 pts A parallel-plate capacitor with radius R - 2.0 cm is being discharged at the rate of - 0.80 C/s, as shown

image text in transcribed
Question 4 1 pts A parallel-plate capacitor with radius R - 2.0 cm is being discharged at the rate of - 0.80 C/s, as shown in the figure. The axis of the capacitor is defined as the straight line connecting the center of the two plates. To calculate the induced magnetic field circling around the axis, we build a circular path with radius 7 - 1.0 cm around the axis. Use clockwise (viewed from left) as the circular path direction, as shown in the figure. Note that the circular path is inside the capacitor. What is the displacement current magnitude through the area bounded by the circular path [Select ] ? What is the induced magnetic field strength (in units of u7) at radius r [Select ] ? What is the direction of the induced magnetic field at radius r, when viewed from the left [Select ] Select no magnetic field counter clockwise clockwise C.W. (viewed from left)
