Trouble with hmwk can anyone help?

I. (16 points)

Select the appropriate answer from the selection provided at the bottom of the page and write it out in the space provided.

_______________ 1. It has the address of the next instruction to be executed by the currently running process.

_______________ 2. A scheduling technique in which currently executing process yields its CPU time to a newly arrived higher priority process is

_______________ 3. It is a memory that is smaller and faster than main memory and that is

interposed between the processor and the main memory.

_______________ 4. In this communication scheme, the sender does not wait for the message to be received by the receiver.

_______________ 5. It is a data structure used to save the context of a process.

_______________ 6. It is technique used in CPU scheduling to address the starvation problem.

_______________ 7. It is a list of all processes in main memory waiting for execution.

_______________ 8. This is used to provide protection from illegal memory addressing.

Cache Asynchronous send

Program Counter Device Queue

Preemptive scheduling Aging

System Stack Ready Queue

Base & Limit Registers Process Control Block

Synchronous send Non-preemptive scheduling

II. (20 points)

a. Put these devices in order of access time from fastest to slowest (4 points)

- Use 1 for fastest & 4 for slowest

Main memory Registers Magnetic disk Cache

b. Put these devices in order of storage capacity from smallest to largest. (4 points)

- Use 1 for smallest & 4 for largest.

Main memory Registers Magnetic disk Cache

c. Indicate True or False for the following statements: (12 points)

i) Non-Privileged instructions can be executed in both user mode and kernel mode.

ii) A process performing a Blocking receive operation assumes a NULL

message and continues if there is no message on the link.

iii) Priority-based scheduling will not lead to starvation problem.

iv) A process is an active program in main memory.

v) A process can make a transition from Ready state to Terminated state.

vi) Round Robin scheduling is suitable for timeshared OS.

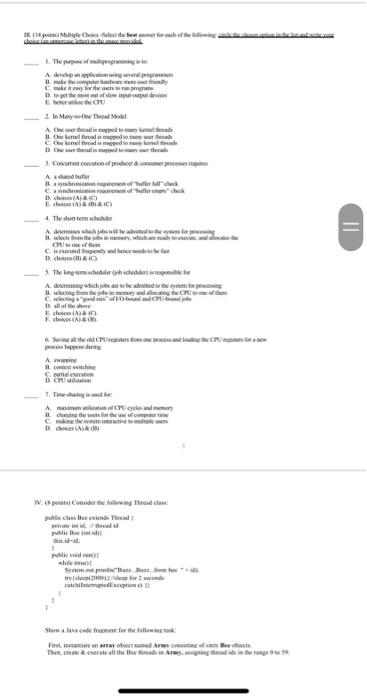

III. (14 points) Multiple Choice -Select the best answer for each of the following: circle the chosen option in the list and write your choice (an uppercase letter) in the space provided.

_____ 1. The purpose of multiprogramming is to:

A. develop an application using several programmers

B. make the computer hardware more user friendly

C. make it easy for the users to run programs

D. to get the most out of slow input-output devices

E. better utilize the CPU

_____ 2. In Many-to-One Thread Model

A. One user thread is mapped to many kernel threads

B. One kernel thread is mapped to many user threads

C. One kernel thread is mapped to many kernel threads

D. One user thread is mapped to many user threads

_____ 3. Concurrent execution of producer & consumer processes requires

A. a shared buffer

B. a synchronization requirement of buffer full check

C. a synchronization requirement of buffer empty check

D. choices (A) & (C)

E. choices (A) & (B) & (C)

_____ 4. The short-term scheduler

A. determines which jobs will be admitted to the system for processing

B. selects from the jobs in memory, which are ready to execute, and allocates the

CPU to one of them

C. is executed frequently and hence needs to be fast

D. choices (B) & (C).

_____ 5. The long-term scheduler (job scheduler) is responsible for

A. determining which jobs are to be admitted to the system for processing

B. selecting from the jobs in memory and allocating the CPU to one of them

C. selecting a good mix of I/O-bound and CPU-bound jobs

D. all of the above

E. choices (A) & (C).

F. choices (A) & (B).

_____ 6. Saving all the old CPU registers from one process and loading the CPU registers for a new

process happens during

A. swapping

B. context switching

C. partial execution

D. CPU utilization

_____ 7. Time-sharing is used for:

A. maximum utilization of CPU cycles and memory

B. charging the users for the use of computer time

C. making the system interactive to multiple users

D. choices (A) & (B)

IV. (8 points) Consider the following Thread class:

public class Bee extends Thread {

private int id; // thread id

public Bee (int id){

this.id=id;

}

public void run(){

while (true){

System.out.println("Buzz...Buzz...from bee " + id);

try{sleep(2000);}//sleep for 2 seconds

catch(InterruptedException e) {}

}

}

}

Show a Java code fragment for the following task:

First, instantiate an array object named Army consisting of sixty Bee objects.

Then, create & execute all the Bee threads in Army, assigning thread ids in the range 0 to 59.

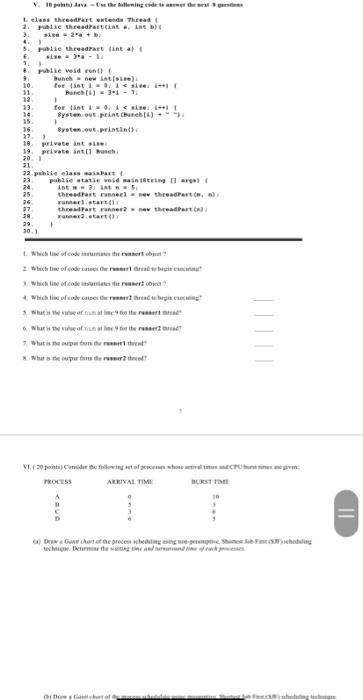

V. 10 points) Java -- Use the following code to answer the next 8 questions

1. class threadPart extends Thread {

2. public threadPart(int a, int b){

3. size = 2*a + b;

4. }

5. public threadPart (int a) {

6. size = 3*a - 1;

7. }

8. public void run() {

9. Bunch = new int[size];

10. for (int i = 0; i

11. Bunch[i] = 3*i - 7;

12. }

13. for (int i = 0; i

14. System.out.print(Bunch[i] + );

15. }

16. System.out.println();

17. }

18. private int size;

19. private int[] Bunch;

20. }

21.

22.public class mainPart {

23. public static void main(String [] args) {

24. int m = 3; int n = 5;

25. threadPart runner1 = new threadPart(m, n);

26. runner1.start();

27. threadPart runner2 = new threadPart(n);

28. runner2.start();

29. }

30.}

1. Which line of code instantiates the runner1 object ? ______

2. Which line of code causes the runner1 thread to begin executing? ______

3. Which line of code instantiates the runner2 object ? ______

4. Which line of code causes the runner2 thread to begin executing? ______

5. What is the value of num at line 9 for the runner1 thread? ______

6. What is the value of num at line 9 for the runner2 thread? ______

7. What is the output from the runner1 thread? ______

8. What is the output from the runner2 thread? ______

VI. ( 20 points) Consider the following set of processes whose arrival times and CPU burst times are given:

PROCESS ARRIVAL TIME BURST TIME

A 0 10

B 5 3

C 3 6

D 6 5

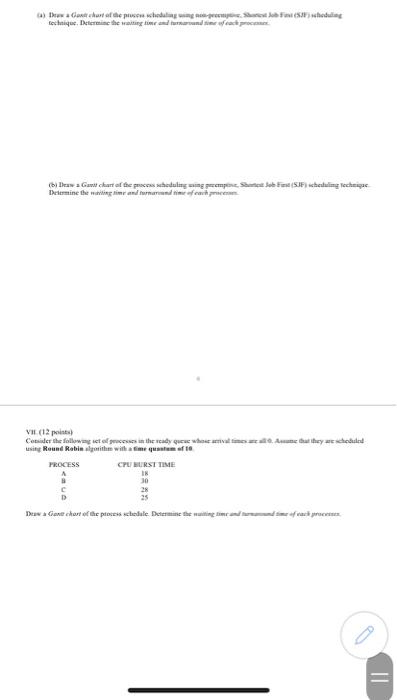

(a) Draw a Gantt chart of the process scheduling using non-preemptive, Shortest Job First (SJF) scheduling technique. Determine the waiting time and turnaround time of each processes.

(b) Draw a Gantt chart of the process scheduling using preemptive, Shortest Job First (SJF) scheduling technique. Determine the waiting time and turnaround time of each processes.

VII. (12 points)

Consider the following set of processes in the ready queue whose arrival times are all 0. Assume that they are scheduled using Round Robin algorithm with a time quantum of 10.

PROCESS CPU BURST TIME

A 18

B 30

C 28

D 25

Draw a Gantt chart of the process schedule. Determine the waiting time and turnaround time of each processes.
