Hello tutors please help me answer this question below thankyou What happened to the voltage 2 points and current in the different resistors of a

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

Hello tutors please help me answer this question below thankyou

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

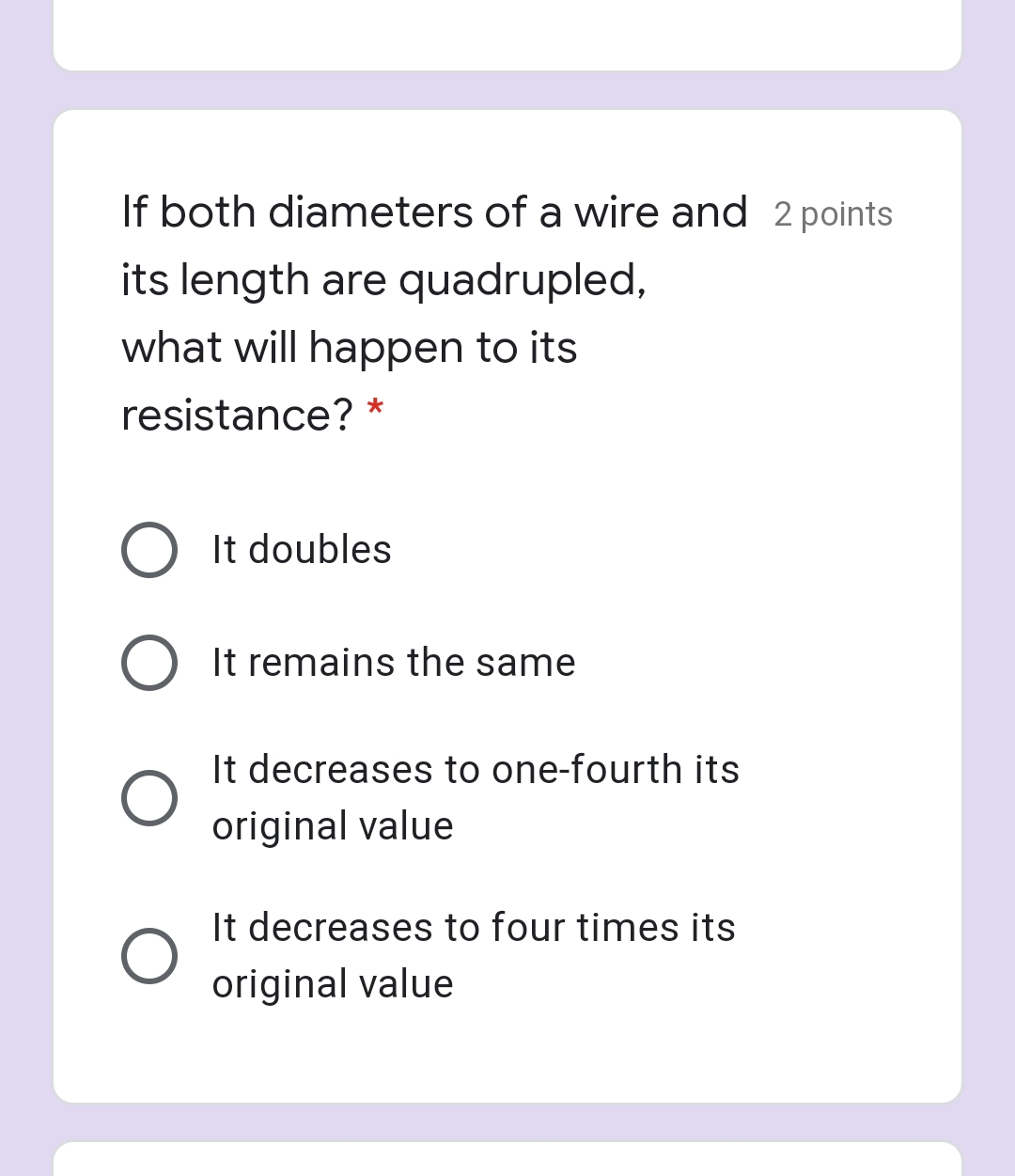

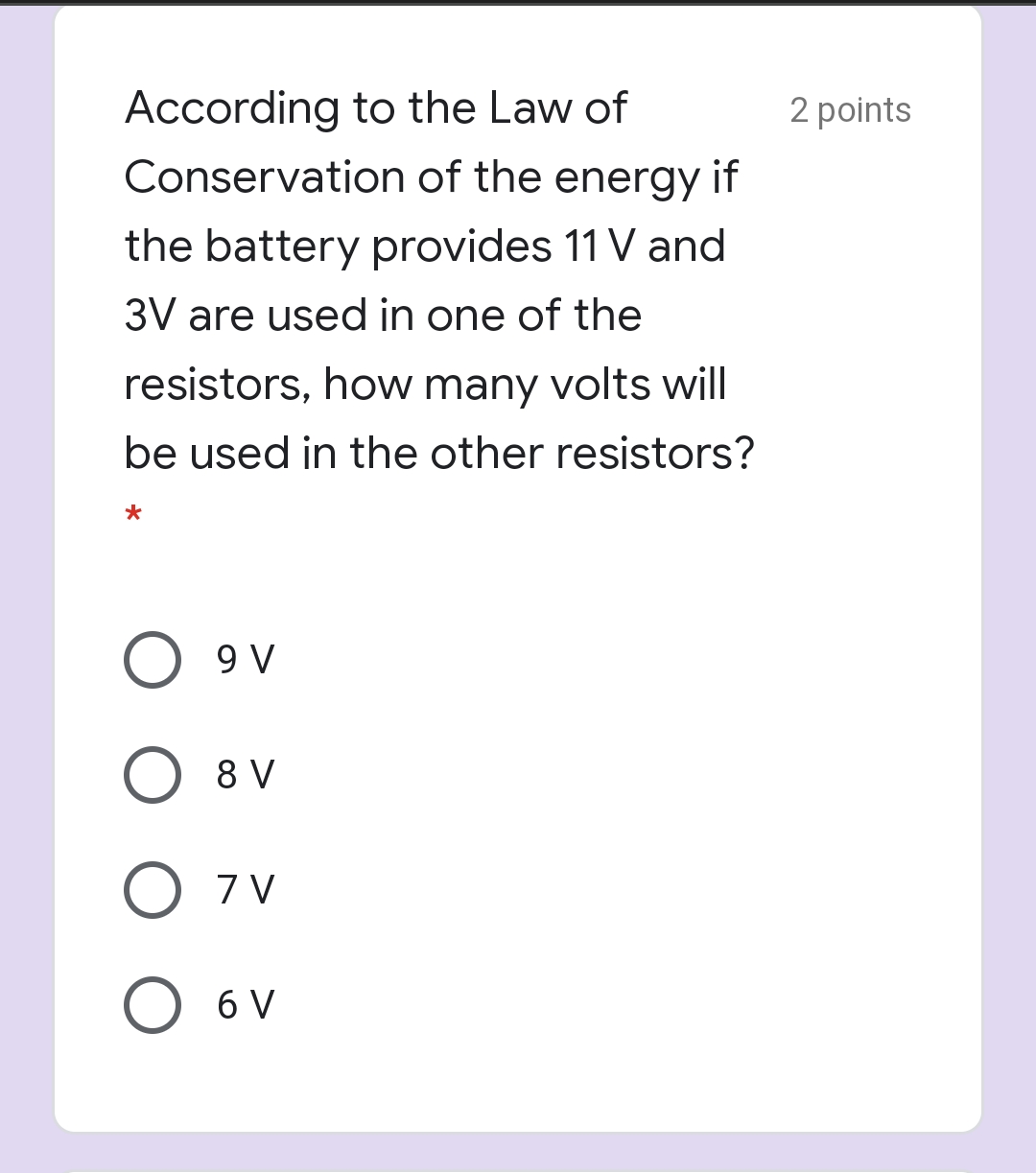

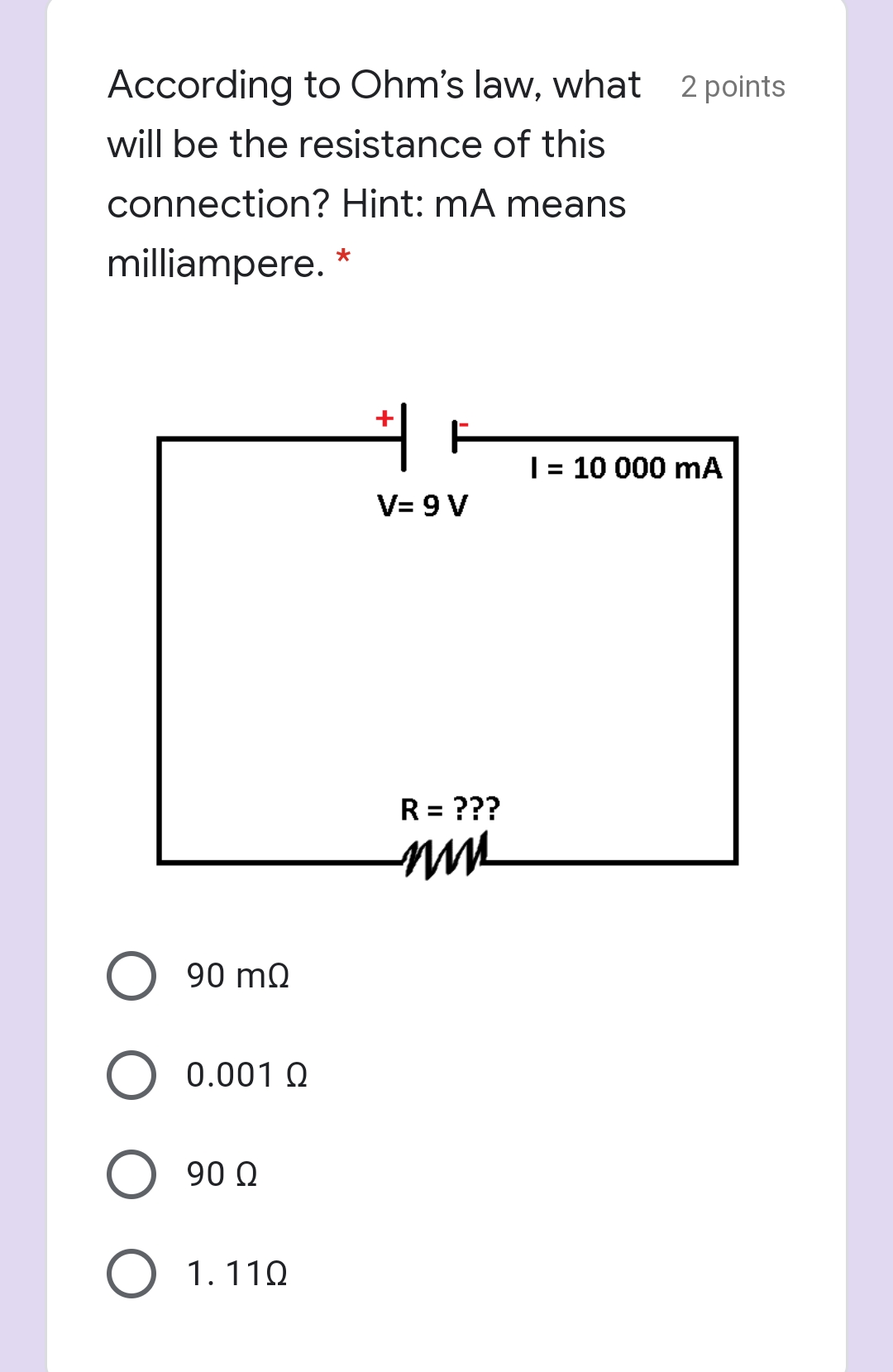

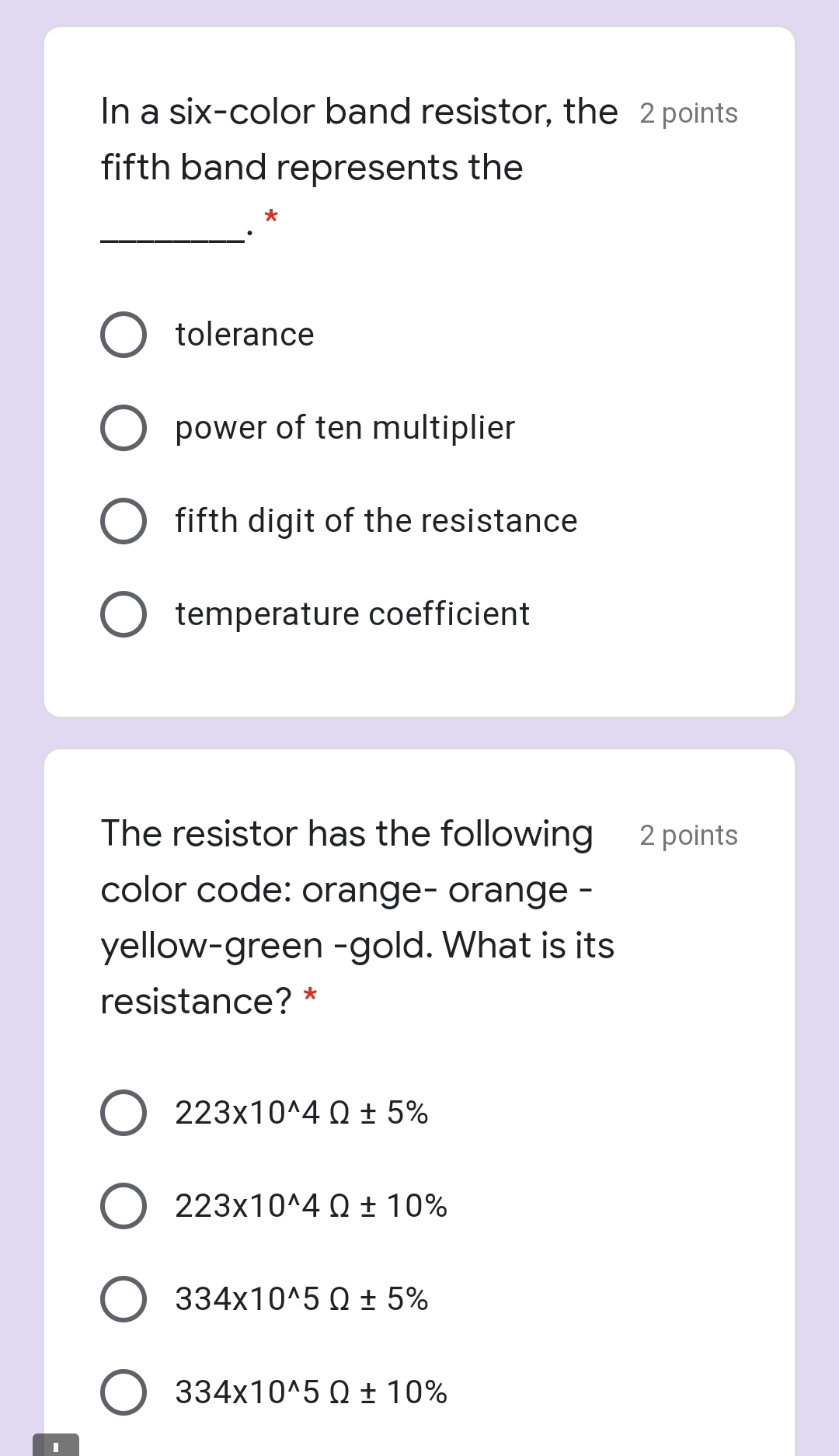

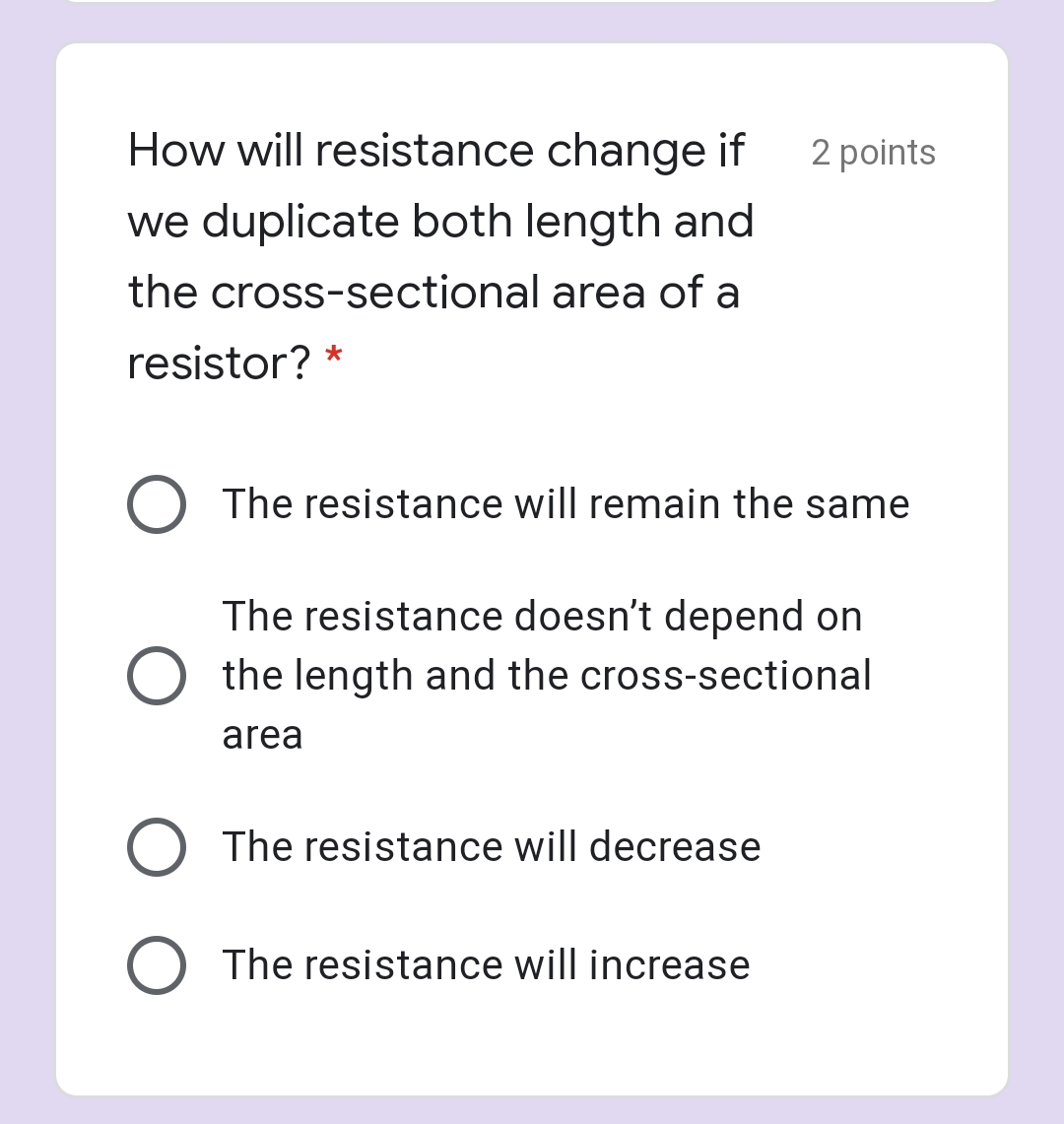

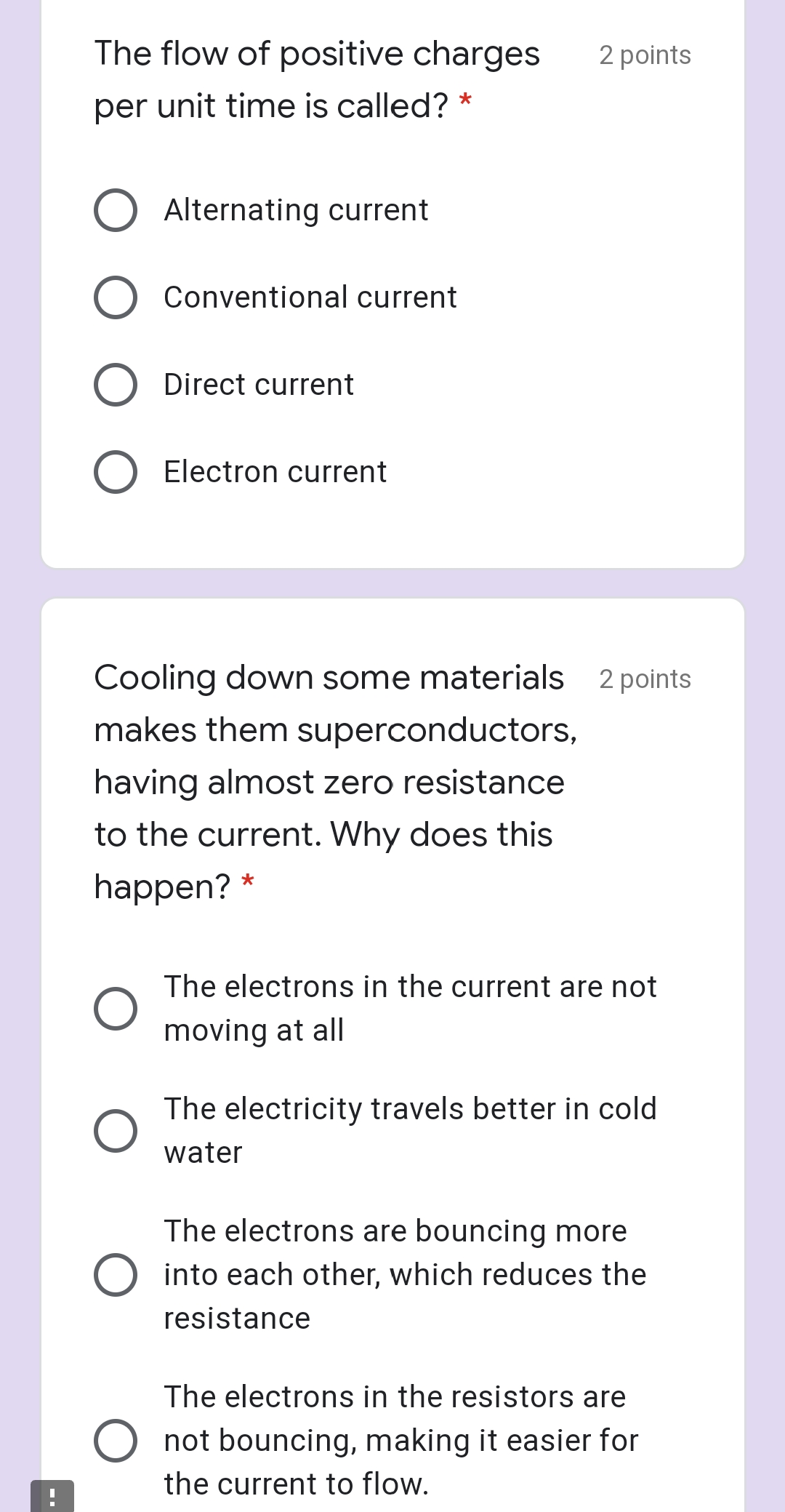

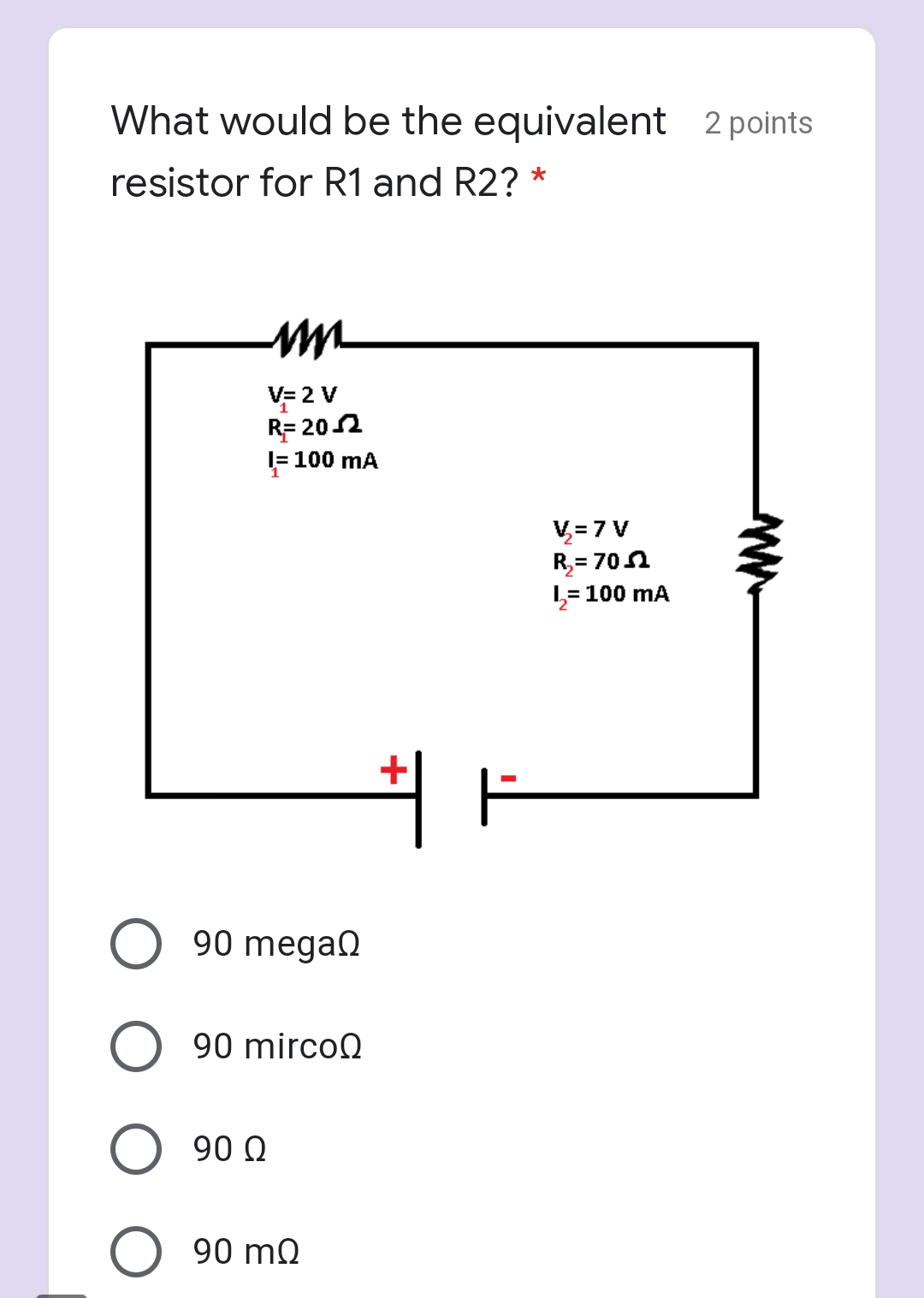

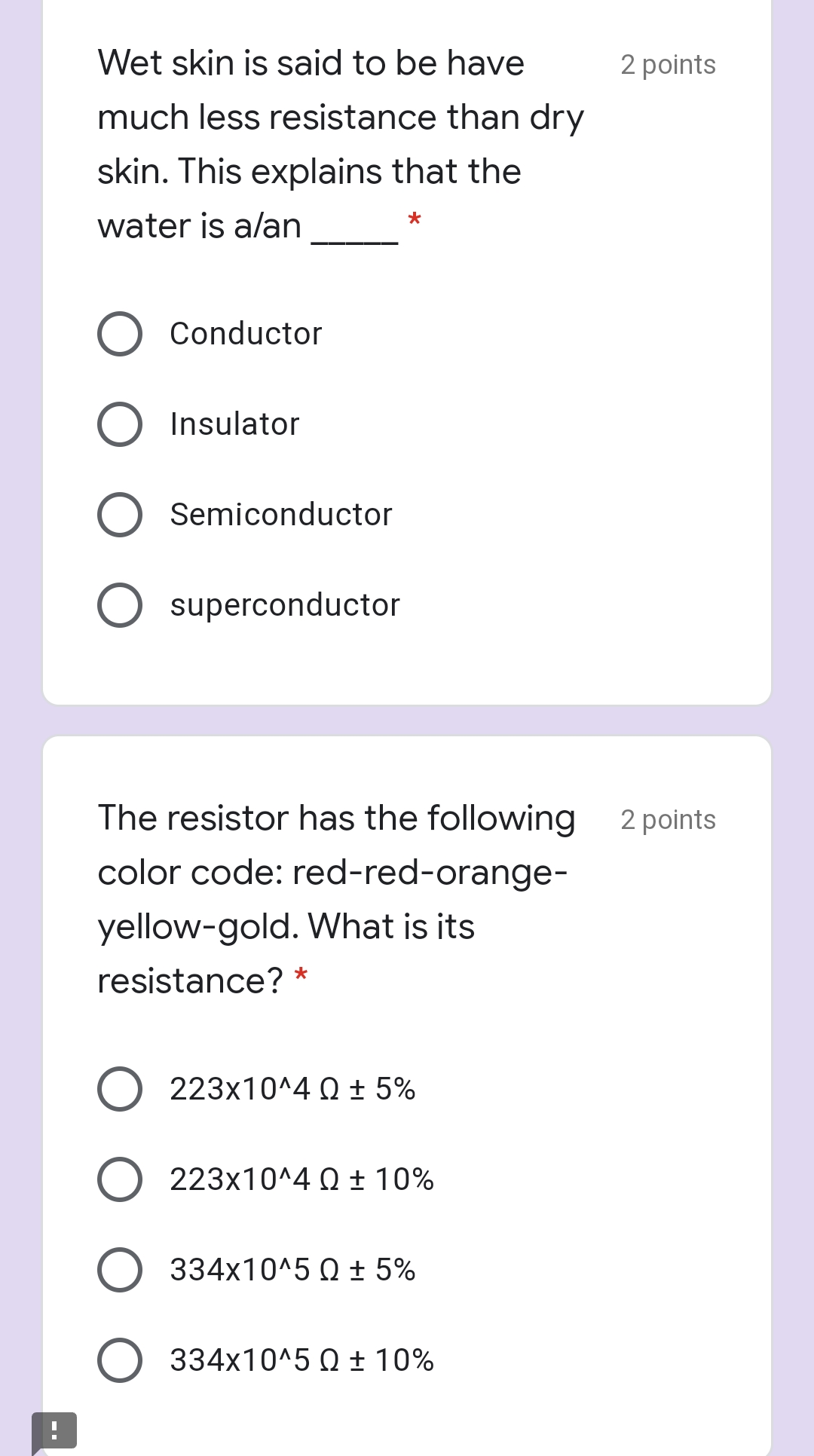

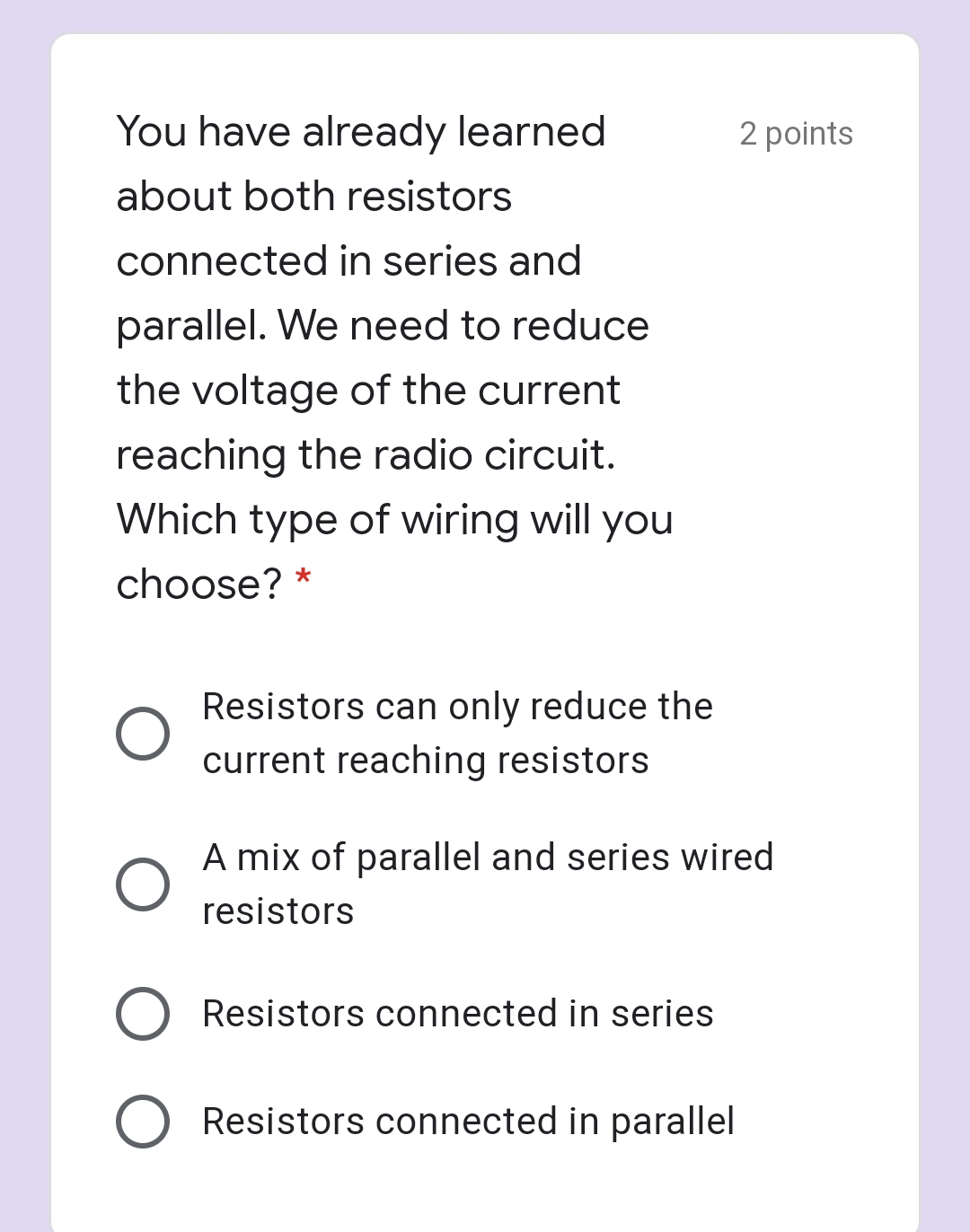

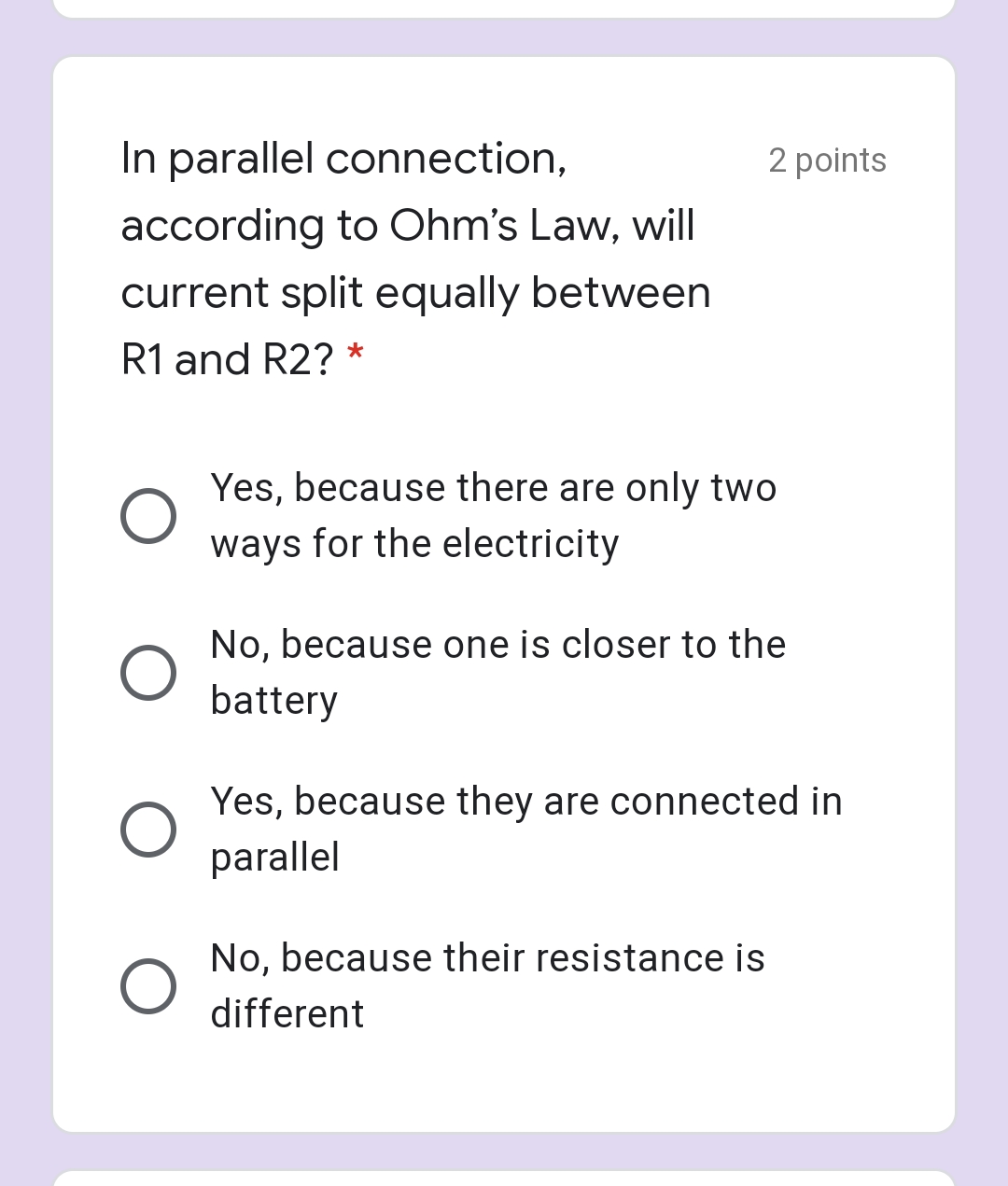

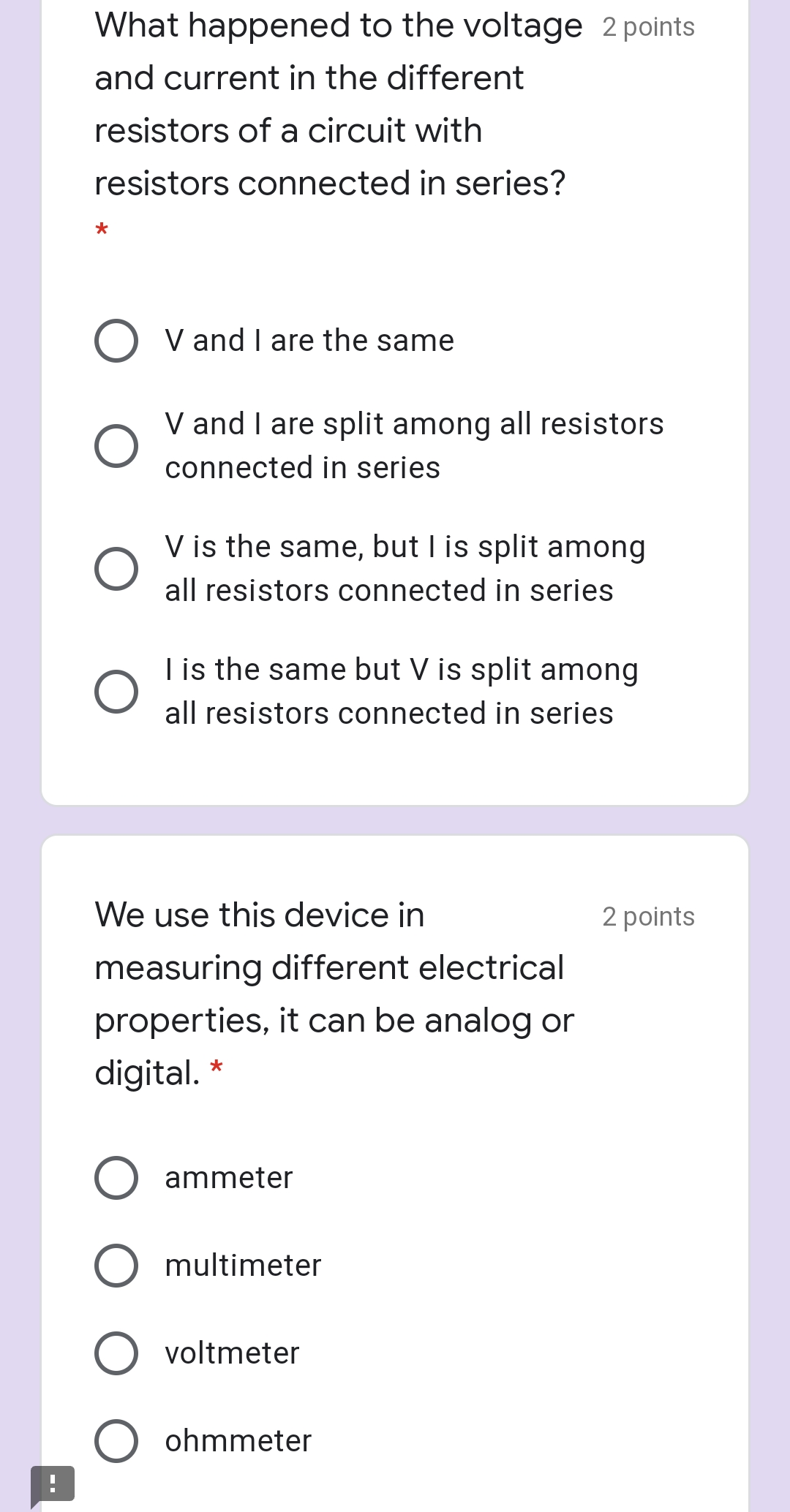

What happened to the voltage 2 points and current in the different resistors of a circuit with resistors connected in series? "I: O V and I are the same 0 V and I are split among all resistors connected in series 0 V is the same, but I is split among all resistors connected in series 0 l is the same but V is split among all resistors connected in series We use this device in 2 points measuring different electrical properties, it can be analog or digital. * O ammeter O multimeter O voltmeter O ohmmeter The flow of positive charges 2 points per unit time is called? * O Alternating current 0 Conventional current 0 Direct current 0 Electron current Cooling down some materials 2 points makes them superconductors, having almost zero resistance to the current. Why does this happen?* 0 The electrons in the current are not moving at all 0 The electricity travels better in cold water The electrons are bouncing more 0 into each other, which reduces the resistance The electrons in the resistors are 0 not bouncing, making it easier for n the current to flow. Wet skin is said to be have much less resistance than dry skin. This explains that the water is a/an * O O O O The resistor has the following color code: red-red-orange yellow-gold. What is its Conductor Insulator Semiconductor superconductor resistance? * OOOO 223x10"4 Q i 5% 223x10"4 Q i 10% 334x10"5 0 1r 5% 334X10"5 Q i 10% 2 points 2 points How will resistance change if 2 points we duplicate both length and the crosssectional area of a resistor? * O The resistance will remain the same The resistance doesn't depend on the length and the cross-sectional area The resistance will decrease 000 The resistance will increase What would be the equivalent 2 points resistor for R1 and R2? * V=2 V R= 20 /2 I= 100 mA V =7 V R = 70n 1=100 mA + 90 megan O 90 mircon O 90 0 O 90 mQIf both diameters of a wire and 2 points its length are quadrupled, what will happen to its resistance? * 0 It doubles 0 It remains the same 0 It decreases to one-fourth its original value 0 It decreases to four times its original value According to Ohm's law, what 2 points will be the resistance of this connection? Hint: mA means milliampere. * I = 10 000 mA According to the Law of Conservation of the energy if the battery provides 11 V and 3V are used in one of the resistors, how many volts will be used in the other resistors? 2 points In parallel connection, 2 points according to Ohm's Law, will current split equally between R1 and R2? * 0 Yes, because there are only two ways for the electricity No, because one is closer to the battery parallel No, because their resistance is 0 Yes, because they are connected in 0 different You have already learned 2 points about both resistors connected in series and parallel. We need to reduce the voltage of the current reaching the radio circuit. Which type of wiring will you choose? * O Resistors can only reduce the current reaching resistors O A mix of parallel and series wired resistors O Resistors connected in series 0 Resistors connected in parallel In a sixcolor band resistor, the 2 points fifth band represents the * O tolerance 0 power often multiplier O fifth digit of the resistance 0 temperature coefficient The resistor has the following 2 points color code: orange- orange - yellowgreen go|d. What is its resistance? * Q 223x10"4 o :r 5% O 223x10"4 o :10% O 334x10"5 o :r 5% O 334x10"5 o 110%
